SB 3-1/2/118-136 MHz-N

½ λ Steel-Band Antenna for Portable Equipment in the 3 m International Aircraft Band

Find Out More
Data Sheet
CE Certification

Other Files

SB 3-1/2/118-136 MHz-N
Electrical
Model SB 3 1/2/118-136 MHz-N
Frequency 118 – 136 MHz
Antenna Type Antenna for portable equipment
Max. Input Power 25 W
Polarisation Vertical
Impedance 50 Ω
Gain 3 – 4 dB (compared to a ¼ λ portable antenna)
VSWR < 2.0:1 Dependent on the size of the portable equipment
Mechanical
Connection(s) N(m)
Materials Whip : Weather- and shockproof plastics
Covered stainless steel band
N(m) connector : Cu-nite plated brass
Colour Black / Metallic Silver
Historic Brand Amphenol Procom
Height Approx. 830 mm / 32.68 in.
Weight Approx. 0.145 kg / 0.32 lb.
  • Rugged, flexible steel-band antenna whip.
  • Curved sectional area to help keeping the antenna erect.
  • Delivered factory tuned and tested to ensure minimum VSWR and optimum performance.
  • Provided with N-male connector.
  • Matching unit built-in.

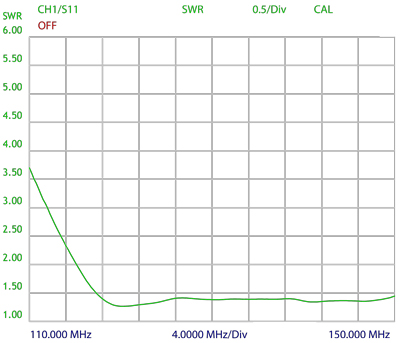

TYPICAL SWR CURVE

Model Product No. Add To Quote
½ λ Steel-Band Antenna for Portable Equipment in the 3 m International Aircraft Band 140000483
