SB 3/118-137 MHz-BNC

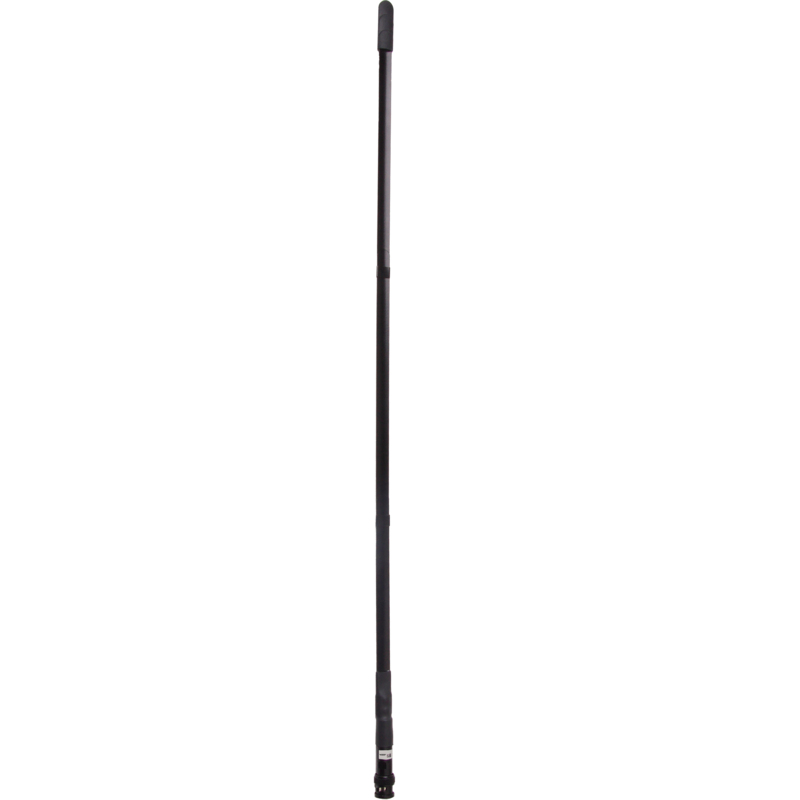

Steel-Band Antenna with BNC-Connection System for the International Aircraft Band

Find Out More
Data Sheet
CE Certification

Other Files

SB 3/118-137 MHz-BNC
Electrical
Model SB 3/118-137 MHz-BNC
Frequency 3 m band
Antenna Type Antenna for portable equipment
Max. Input Power 50 W
Polarisation Vertical
Impedance 50 Ω
Gain 0 dB (compared to a ¼ λ portable antenna)
VSWR < 2.0:1 when mounted directly on portable equipment
Bandwidth ≥ 15 MHz @ VSWR ≤ 2.5:1
Mechanical
Connection(s) BNC(m)
Materials Stainless steel band and rubber
Black-chromed brass
Colour Black
Historic Brand Amphenol Procom
Height Approx. 570 mm / 22.44 in.
Weight Approx. 0.05 kg / 0.11 lb.
  • Rugged, flexible steel-band antenna whip.
  • Curved sectional area to help keeping the antenna erect.
  • Full-size ¼ λ whip.
  • Delivered factory-tuned and -tested to ensure minimum VSWR and optimum performance.

TYPICAL SWR CURVE

Model Product No. Add To Quote
Steel-Band Antenna with BNC-Connection System for the International Aircraft Band 140000460

Login required

You need to be logged in into your account to view downloadable documents.

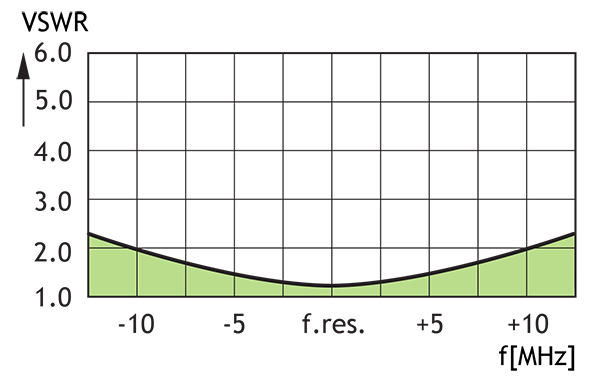

Typical VSWR curve

SB 3!118 137 BNC vswr
