SB 4/…-FME

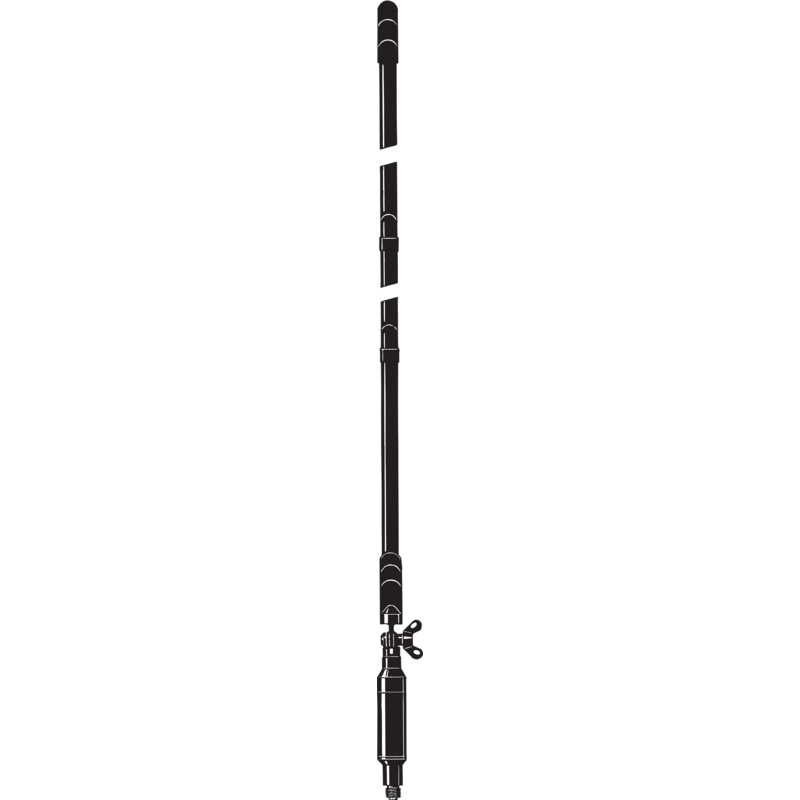

Steel-Band Antenna with Universal FME-Connection System for Portable Equipment in the 4 m Band

Find Out More
View Variations
Data Sheet
CE Certification

Other Files

SB 4/...-FME

Quickly identify the correct ordering code.

SB 4/…-FME
Electrical
Model SB 4/…-FME
Frequency 4 m band covered by three models
Antenna Type Shortened ¼ λ antenna for portable equipment
Max. Input Power 25 W
Polarisation Vertical
Impedance 50 Ω
VSWR < 2.0:1 when mounted directly on portable equipment
Bandwidth ≥ 10 MHz @ VSWR ≤ 3.0:1
Mechanical
Connection(s) FME(f) (Exchangeable BFME-connectors to be ordered separately)
Materials Stainless steel band and rubber Black-chromed brass
Colour Black
Historic Brand Amphenol Procom
Height Approx. 650 mm / 25.59 in.
Weight Approx. 0.085 kg / 0.19 lb.
  • Rugged, flexible steel-band antenna whip.
  • Curved sectional area to help keeping the antenna erect.
  • Shortened ¼ λ whip yields an acceptable mechanical length.
  • Provided with toggle joint and wing screw for easy fold-down.
  • Delivered factory tuned and tested to ensure minimum VSWR and optimum performance.
  • Provided with universal FME-connection system for optimum flexibility and easily exchangeable connectors.
  • Designed for use with the following of Procoms line of black FME-connectors (to be ordered separately): BFME-UHF, BFME-BNC, BFME-TNC, and BFME-N.

No content found

This product doesn’t have any diagrams yet.

Model Product No. Frequency Add To Quote

SB 4/l-FME(f)

 140000075 66 – 76 MHz

SB 4/m-FME(f)

 140000076 72 – 82 MHz

SB 4/h-FME(f)

 140000074 78 – 88 MHz

Login required

You need to be logged in into your account to view downloadable documents.

Please Note

The SB 4 is also available with different thread studs, but in this case with fixed, non-exchangeable connector (not FME-connection system). Information on these special versions on request.

Recommended BFME-Connectors
BFME uhf bnc tnc n
(To be ordered separately)
