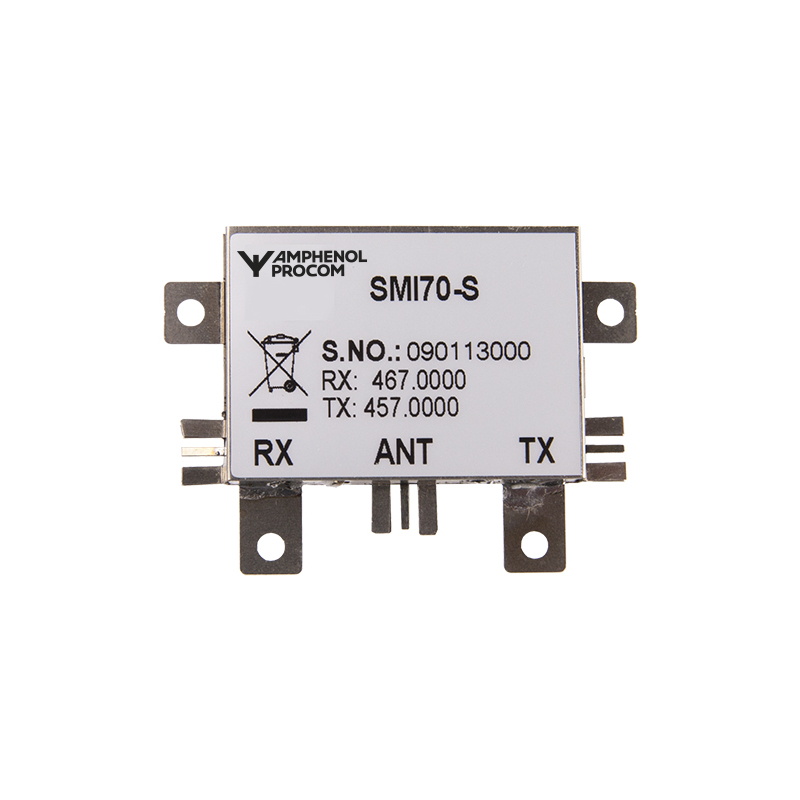

SMI 70-S

450 MHz Ceramic Microplexer

Find Out More
Data Sheet
CE Certification

Other Files

SMI 70-S
Electrical
Model SMI 70-S
Frequency 400 – 475 MHz
Max. Input Power 6 W without heatsink
30 W with heatsink
Impedance 50 Ω
Environmental
Operating temperature range -30 °C to +85 °C
Mechanical
Connection(s) Drop-in, coplanar
Historic Brand Amphenol Procom
Dimensions 52.5 x 38 x 7.3 mm / 2.07 x 1.50 x 0.29 in.
Weight Approx. 0.035 kg / 0.08 lb.
Housing Dimensions 39.5 x 28 x 7.3 mm / 1.56 x 1.10 x 0.29 in.
  • Extremely small and lightweight ceramic duplexer (Extremely small: only 8 cm3!).
  • Ideal for integration in portable 450 MHz cellular radio telephones.
  • Low insertion loss by use of high-performance ceramic materials and computer optimized interconnection networks.
  • Rugged mechanical design and low temperature drift.
  • High power handling – handles 30 W at 85 °C when mounted on a 25 cm2 heatsink!
  • Designed for direct drop-in on microstrip PCB.
  • Coplanar terminals save space and provide ease-of-manufacturing and a non-discontinuity interface to the PCB.
  • Environment proof.

No content found

This product doesn’t have any diagrams yet.

Model Product No. Add To Quote
450 MHz Ceramic Microplexer 200000643

Login required

You need to be logged in into your account to view downloadable documents.

Mounting Details

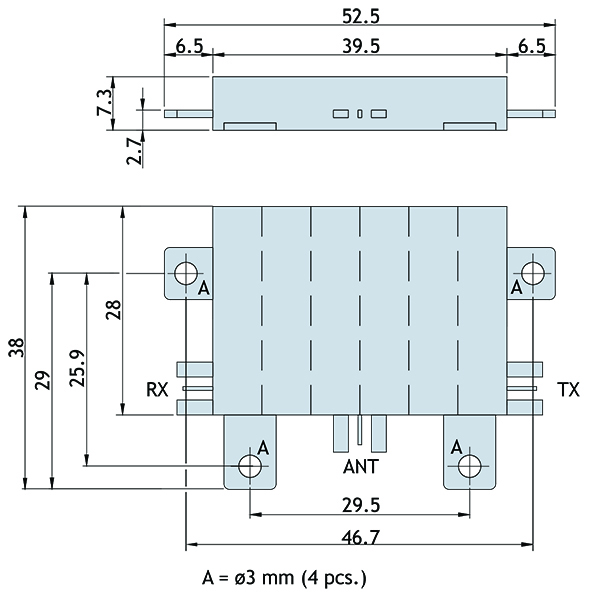

SMI 70 S Mounting Details

Detailed installation drawing available upon request.

Typical Response curve @ 10 MHz Duplex Spacing (Single Channel)

Typical Response curve @ 10 MHz Duplex Spacing 1 MHz BW
