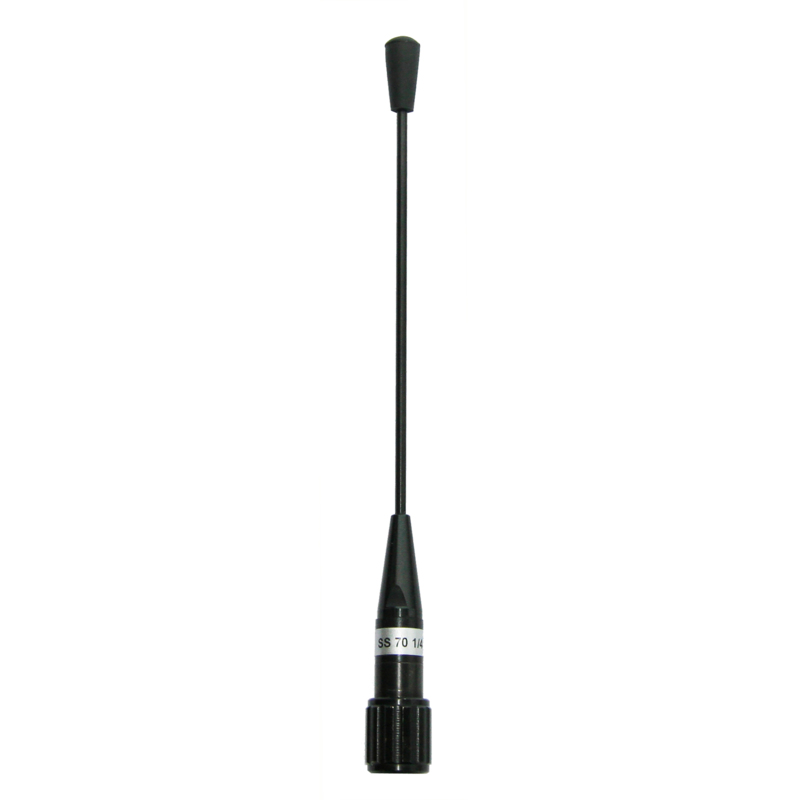

SS 70 1/4-TNC

End-Fed ¼ λ Monopole Antenna with TNC-Connection System for Portable Equipment in the 420 – 450 MHz

Find Out More
Data Sheet
CE Certification

Other Files

SS 70 1/4-TNC
Electrical
Model SS 70 1/4-TNC
Frequency 420 – 450 MHz
Antenna Type Antenna for portable equipment
Max. Input Power 25 W
Polarisation Vertical
Impedance 50 Ω
Gain 0 dB (compared to a ¼ λ portable antenna)
VSWR < 1.3:1 @ f. res.
Bandwidth ≥ 30 MHz @ VSWR ≤ 2.0:1
Mechanical
Connection(s) TNC(m)
Materials Stainless steel
Black-chromed brass
Colour Black
Historic Brand Amphenol Procom
Height Approx. 173 mm / 6.81 in.
Weight Approx. 0.035 kg / 0.08 lb.
  • Designed for professional use.
  • Full-size ¼ λ whip.
  • Highest quality materials in an elegant design.
  • Delivered factory-tuned and -tested to ensure minimum VSWR and optimum performance.
  • TNC (male).

No content found

This product doesn’t have any diagrams yet.

Model Product No. Add To Quote
End-Fed ¼ λ Monopole Antenna with TNC-Connection System for Portable Equipment in the 420 – 450 MHz 140000360
