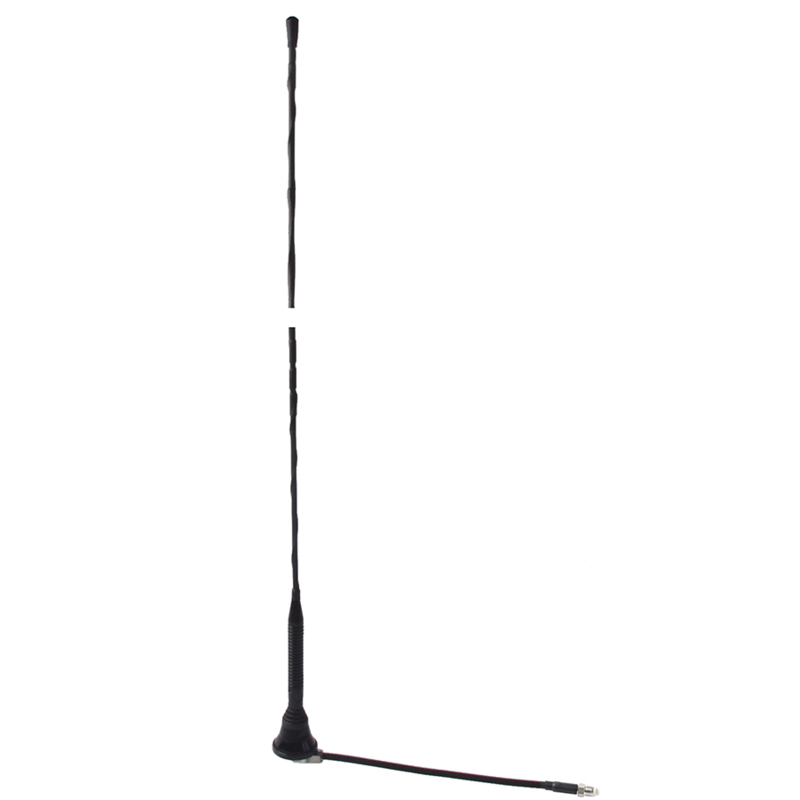

TFA 4/2/TETRA-FM-S-CXP0.26-BBMU
Electrical
Model TFA 4/2/TETRA-FM-S-CXP0.26-BBMU
Frequency 4 m : 74.2 – 87.5 MHz
2 m : 167.5 – 174 MHz
70 cm : 380 – 410 MHz
FM band : 93 – 108 MHz (Limited in 88 – 93 MHz)
Antenna Type Collinear mobile antenna
Max. Input Power 25 W
Polarisation Vertical
Impedance 50 Ω
VSWR 74.2 – 77.7 and 84 – 87.5 MHz : 2.5:1
167.5 – 169.5 and 172 – 174 MHz : 2.0:1
380 – 410 MHz : 2.5:1
Gain (EIA RS-329-1) 4 m : Approx. -3 dB
2 m : Approx. -4 dB
70 cm : Approx. 2 dB (acc. to EIA RS-329-1)
Mechanical
Materials Whip : Glass fibre whip with copper wire winding, polyethylene-covered
Black-chromed brass
Spring : Black-chromed stainless steel
Colour Black
Historic Brand Amphenol Procom
Antenna Mount Type Hole Mount
Height Approx. 670 mm / 26.38 in.
Weight Approx. 0.06 kg / 0.13 lb.
Mounting On the CXP0.26 mount
  • 4-Band Mobile Antenna for the 4 m, 2 m, TETRA and FM Bands.
  • Polyethylene-covered flexible whip.
  • Black-chromed stainless steel antenna mount (CX-mount) with M6 thread whip-mounting system.
  • Bendable section in mount makes whip tiltable 30° by hand.
  • Easily removable whip (e.g. for wash tunnels).
  • Matching unit (BBMU) included.

No content found

This product doesn’t have any diagrams yet.

Model Product No. Add To Quote
colinear Mobile Antenna for the 4 m, 2 m, TETRA and FM Bands 130001731

Login required

You need to be logged in into your account to view downloadable documents.

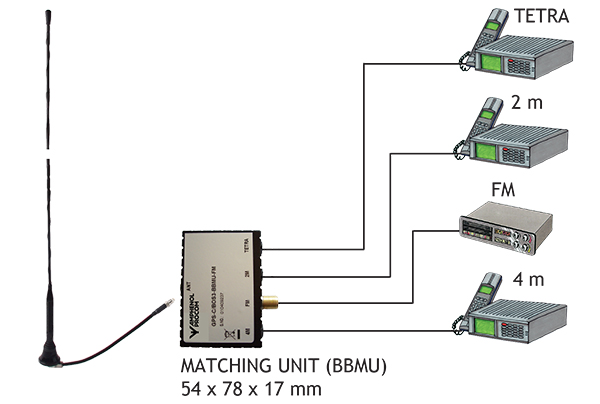

Connection Diagram

Installation

This antenna can be mounted anywhere on the vehicle.

Mounting can take place exclusively with access from the outside when drilling an 18 mm dia. hole. Mounting can take place from the inside by drilling a 14 mm dia. hole. When mounting in a 14 mm dia. hole, remove the bottom plastic ring of the gasket with a sharp cutter.

When cleaning the car in car-washing machines, remove the whip using a spanner, size 9 mm. After wash, refit the whip and tighten it lightly with the spanner.

As the mount is internally equipped with a bendable section, the antenna can always be adjusted to an upright position independent of the tilt angle of the installation spot (up to 30° tilt).

1. Installation Dimension

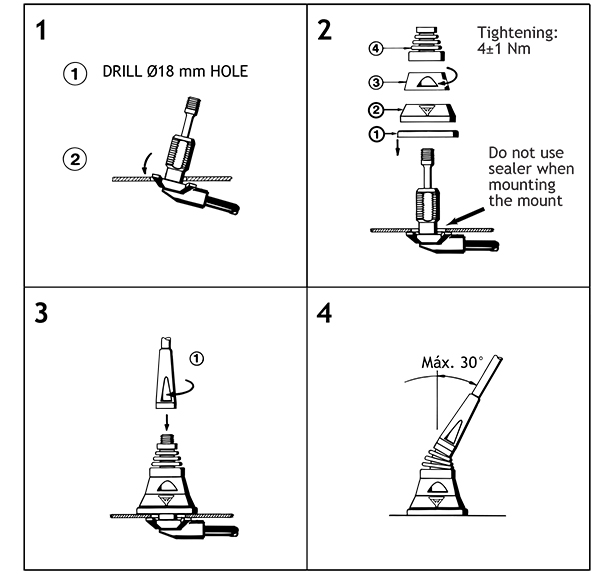

2. Installation Steps

CXP4 Mount inst step samlet


Do not use sealer on rubber gasket or other places.
