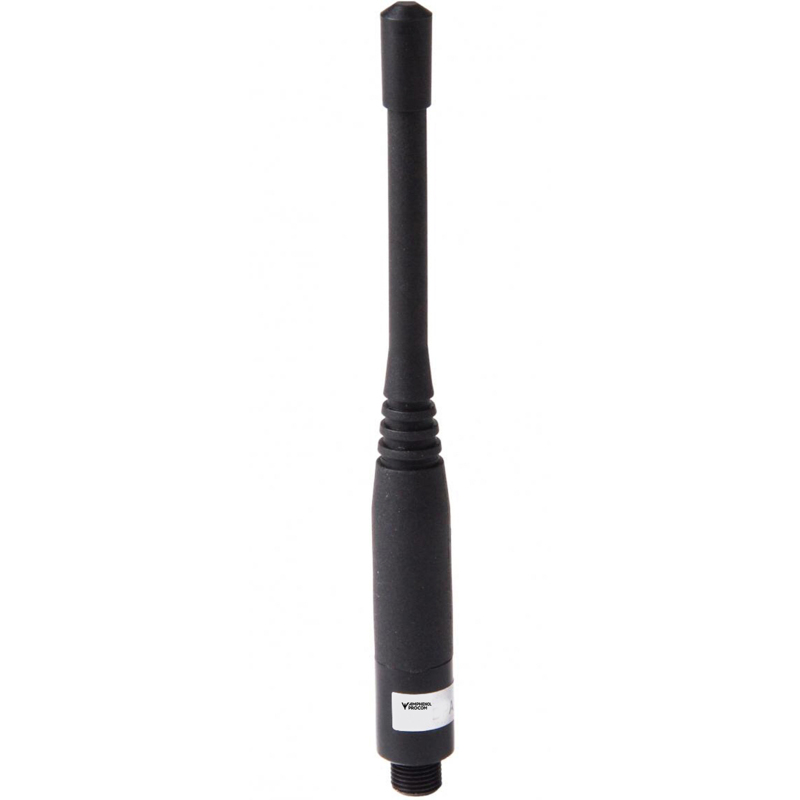

TFA 400/900/1800-FME

¼ λ Triple Frequency Antenna for 400, 900 and 1800 MHz bands. Designed for portable equipment

Find Out More
Data Sheet
CE Certification

Other Files

TFA 400/900/1800-FME
Electrical
Model TFA 400/900/1800-FME
Frequency 380 – 430 MHz
880 – 960 MHz
1710 – 1880 MHz
Antenna Type Triple-frequency portable antenna
Max. Input Power 25 W
Polarisation Vertical
Impedance 50 Ω
Gain 0 dB (compared to a ¼ λ portable antenna)
VSWR 400 MHz : ≥ 50 MHz @ VSWR ≤ 2.0:1
880 – 960 MHz : ≥ 80 MHz @ VSWR ≤ 2.0:1
1710 – 1880 MHz : ≥ 300 MHz @ VSWR ≤ 2.5:1
Bandwidth 400 MHz : ≥ 50 MHz @ VSWR ≤ 2.0:1
880 – 960 MHz : ≥ 80 MHz @ VSWR ≤ 2.0:1
1710 – 1880 MHz : ≥ 300 MHz @ VSWR ≤ 2.5:1
Mechanical
Connection(s) FME(f) (Exchangeable BFME-connectors to be ordered separately)
Materials Thermoplastic rubber
Black-chromed brass
Colour Black
Historic Brand Procom
Height Approx. 130 mm / 5.12 in.
Weight Approx. 0.02 kg / 0.04 lb.
  • This antenna makes it possible to operate on 400, 900 and
    1800 MHz at the same time on one antenna.
  • Flexible antenna element built into an elastic shroud of hard-wearing
    and weather- and shockproof plastics.
  • Ready-tuned and unity gain on all three bands.
  • Provided with universal FME-connection system for optimum flexibility and with easily exchangeable connectors.
  • Designed for use with the following of Procom’s line of black FME-connectors (to be ordered separately): BFME-BNC, BFME-TNC, BFME-N, BFME-MUHF, BFME-EBNC, BFME-ETNC and BFME-EMUHF.

No content found

This product doesn’t have any diagrams yet.

Model Product No. Add To Quote
¼ λ Triple Frequency Antenna for 400, 900 and 1800 MHz bands. Designed for portable equipment 140000472

Login required

You need to be logged in into your account to view downloadable documents.

Note

The antenna is delivered factory-tuned. Other frequencies on request.

Recommended BFME-Connectors

BFME bnc tnc n muhf ebnc etnc emuhf

(To be ordered separately)
