TM

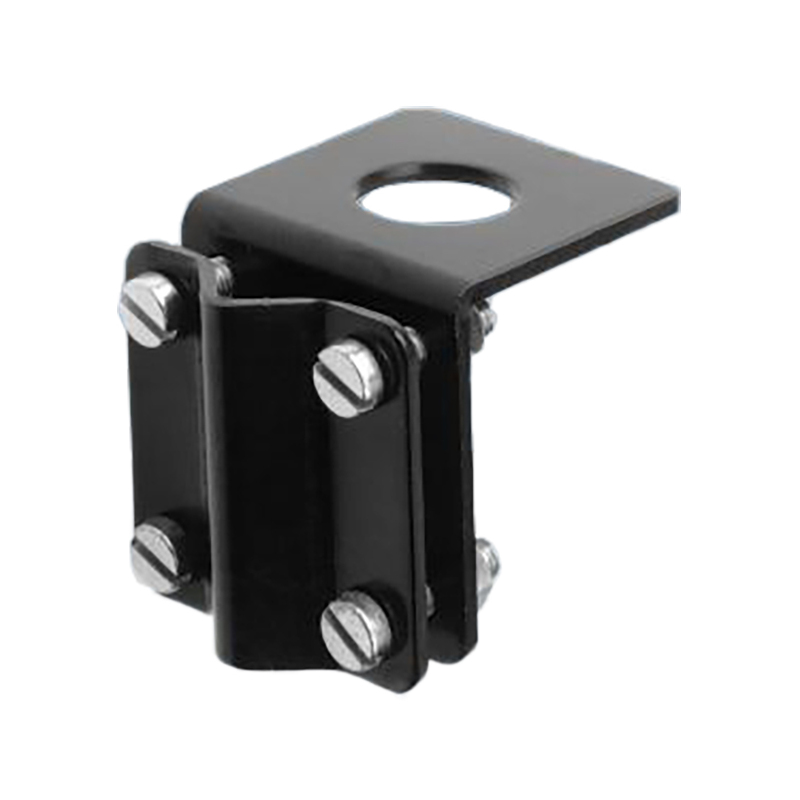

Truck Mirror Bracket

Find Out More
Data Sheet
CE Certification

Other Files

TM
Electrical
Frequency Can be applied with antennas up to 175 MHz
Mechanical
Mounting Hole ø 22.5 mm / 0.89 in.
Materials Zinc-coated steel
Colour Black
Historic Brand Amphenol Procom
Dimensions Approx. 52 x 50 x 62 mm / 2.05 x 1.97 x 2.44 in.
Weight Approx. 0.19 kg / 0.42 lb.
  • Using the TM, the Procom type Z-mount can be fixed on the mirror clamps of a truck.
  • All Z-mount antennas for frequencies below 175 MHz can be mounted using the TM.

No content found

This product doesn’t have any diagrams yet.

Model Product No. Add To Quote
Truck Mirror Bracket 130000365

Login required

You need to be logged in into your account to view downloadable documents.

Please Note
  • Remember fastening the two set-screws at the bottom of the mount after having finished the mounting to ensure a good ground-connection.
  • The normal cutting diagrams valid for an antenna mounted directly on the car roof do not apply when the antenna is mounted on the TM. The antenna must be tuned using an VSWR-meter.
