TRI 2/900/1800/UMTS/FM

Triplexer for Two Mobile Telephones (144-175 MHz (COM1) / 880-2300 MHz (COM2)) and Car Radio (0-108)

Find Out More
Data Sheet
CE Certification

Other Files

TRI 2/900/1800/UMTS/FM
Electrical
Model TRI 2/900/1800/UMTS/FM
Frequency Mobile telephone 1 : 144 – 175 MHz (COM1)
Mobile telephone 2 : 880 – 2300 MHz (COM2)
Car radio : 0 – 108 MHz (RADIO)
Max. Input Power 35 W mobile telephone
Insertion Loss 0 – 108 MHz : 1.5 dB
144 – 175 MHz : 1.0 dB
880 – 2300 MHz : 0.7 dB
Impedance Transceiver : 50 Ω
Car radio : 75 Ω
Isolation COM1 to COM2 ≥ 40 dB
COM1 to car radio ≥ 35 dB
COM2 to car radio ≥ 40 dB
Environmental
Operating temperature range -30 °C to +70 °C
Mechanical
Connection(s) COM1, COM2, Antenna : FME
Car radio : CRC-Connector (M10 x 0.75)
Historic Brand Amphenol Procom
Dimensions 50 x 21 x 60 mm / 1.97 x 0.83 x 1.97 in.
Weight Approx. 0.068 kg / 0.15 lb.
Accessories Car radio cable
Type 1 m CRC (length 1 m)
Type 5 m CRC (length 5 m)
  • Triplexer for simultaneous operation of two mobile telephones and car radio on a common mobile telephone antenna.
  • Excellent coverage of the two bands 144 – 175 MHz and 880 – 2300 MHz.
  • Extremely small dimensions.
  • Quick installation using dual-adhesive pad provided.
  • FME-connections on antenna and transceiver terminals
  • CRC (M10 x 0.75) connection on the car radio terminal.
  • 1 m or 5 m Procom 75 Ohm car radio cable available as an option.

No content found

This product doesn’t have any diagrams yet.

Model Product No. Add To Quote
Triplexer for Two Mobile Telephones (144-175 MHz (COM1) / 880-2300 MHz (COM2)) and Car Radio (0-108) 200000792

Login required

You need to be logged in into your account to view downloadable documents.

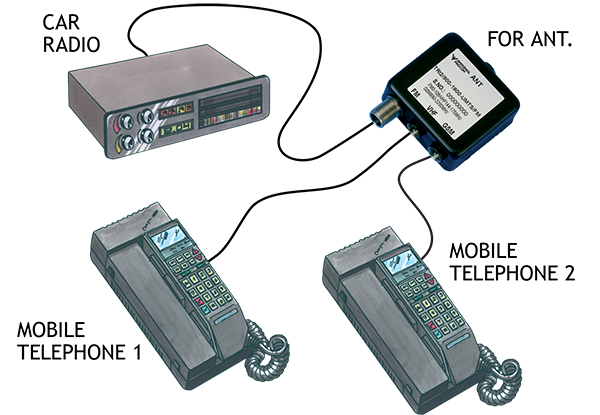

Connection Diagram

TRI 2 900 1800 umts fm samletegning

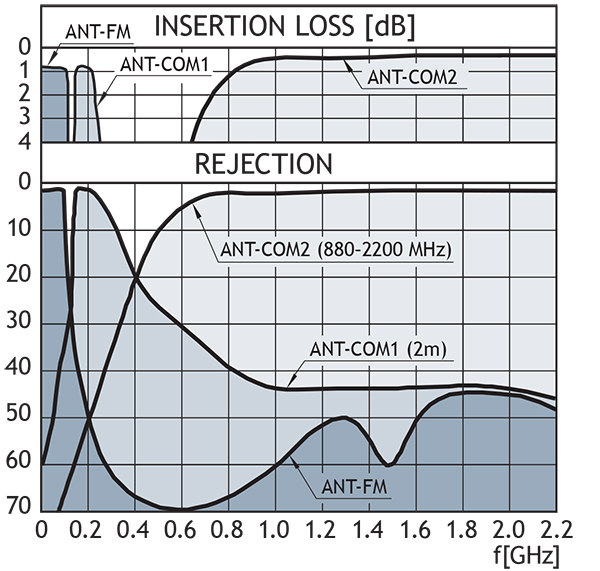

Typical response curve

Tri 2 900 1800 umts fm insloss GB

Installation Notes
  1. The 50 Ω cable between antenna and diplexer should be kept as short as possible (preferably not more than 1 m).
  2. Some communication antennas have insufficient height to ensure satisfactory broadcast reception. Only antenna whips with a height of at least 25 cm are acceptable.
  3. Tuning: The antenna is tuned for best VSWR at the operating frequency as usual. The filter is factory-tuned and ready for installation.
