TRI 70/900/1800/UMTS/FM-SMA

Triplexer for TETRA (380-470 MHz), GSM (870-2300 MHz) and Car Radio (0-108 MHz)

Find Out More
View Variations
Data Sheet
CE Certification

Other Files

TRI 70/900/1800/UMTS/FM-SMA

Quickly identify the correct ordering code.

TRI 70/900/1800/UMTS/FM-SMA
Electrical
Model TRI 70/900/1800/UMTS/FM-SMA
Frequency TETRA : 380 – 470 MHz (UHF)
Mobile telephone : 870 – 2300 MHz (GSM)
Car radio : 0 – 108 MHz (FM)
Max. Input Power 35 W mobile telephone and TETRA
Insertion Loss 0 – 108 MHz : = 2.0 dB
380 – 470 MHz : = 1.0 dB
870 – 2300 MHz : = 0.7 dB
Impedance Transceiver : 50Ω
Car radio : 75Ω
Isolation UHF to GSM = 40 dB
UHF to FM = 35 dB
GSM to FM = 40 dB
Environmental
Operating temperature range -30 °C to +70 °C
Mechanical
Connection(s) SMA
Historic Brand Amphenol Procom
Dimensions 50 x 21 x 60 mm /
1.97 x 0.83 x 1.97 in.
Weight Approx. 0.068 kg / 0.15 lb.

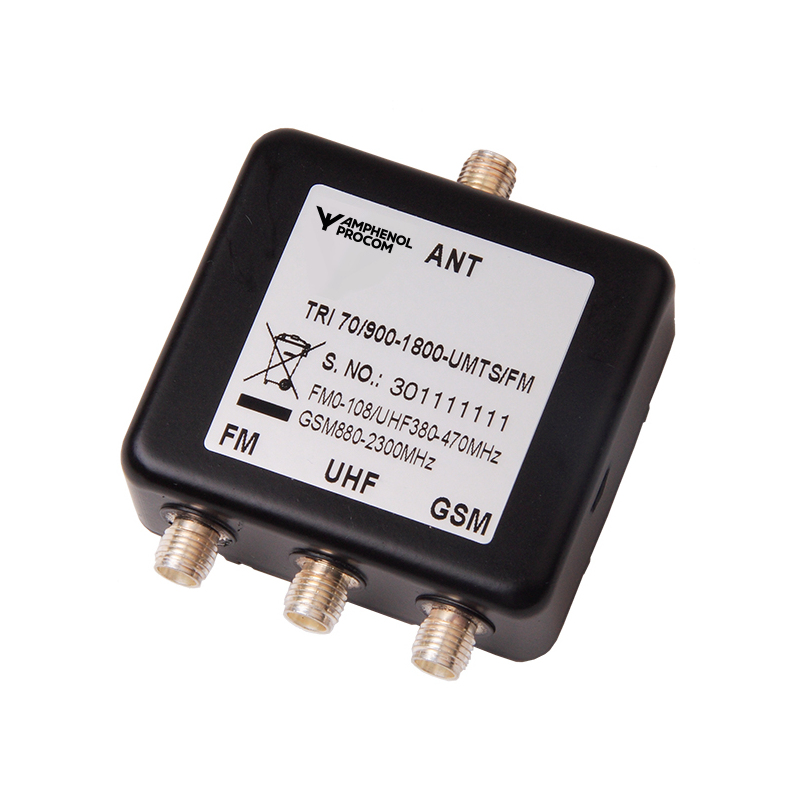

  • Triplexer for simultaneous operation of TETRA, GSM mobile telephone and car radio on a common mobile telephone antenna.
  • Excellent coverage of the two bands 380 – 470 MHz and 870 – 2300 MHz.
  • Small dimensions.
  • Two mounting options available:
  • Dual-adhesive pad for quick installation.
  • Mounting brackets with ø3.2 mm holes for screw mounting.

No content found

This product doesn’t have any diagrams yet.

Model Product No. Additional Information Add To Quote

TRI 70/900/1800/UMTS/FM-SMA

 200002134 Dual-adhesive pad

TRI 70/900/1800/UMTS/FM-SMA-M

 200002331 Mounting brackets

Login required

You need to be logged in into your account to view downloadable documents.

Mounting details

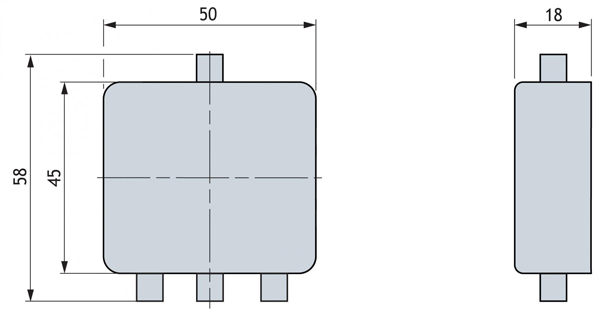

TRI 70/900/1800/UMTS/FM-SMA

tri 709001800umtsfm sma hole placeing 1

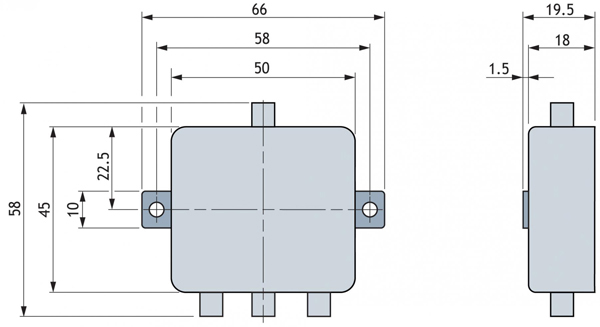

TRI 70/900/1800/UMTS/FM-SMA-M

tri 709001800umtsfm sma m hole placeing2

All dimensions are given in mm [in.]

Typical Response curve

Installation note
  1. The 50 Ω cable between antenna and diplexer should be kept as short as possible (preferably not more than 1 m).
  2. Some communication antennas have insufficient height to ensure satisfactory broadcast reception. Only antenna whips with a height of at least 25 cm are acceptable.
  3. Tuning: The antenna is tuned for best VSWR at the operating frequency as usual. The filter is factory-tuned and ready for installation.
