UWB-I 380-6000

Ultra Wideband Omnidirectional Antenna capable of supporting TETRA, GSM, DCS, PCS, UMTS, WiFi 2.4 and 5.6 GHz, 4G LTE, and WiMax

Find Out More
Data Sheet
CE Certification

Other Files

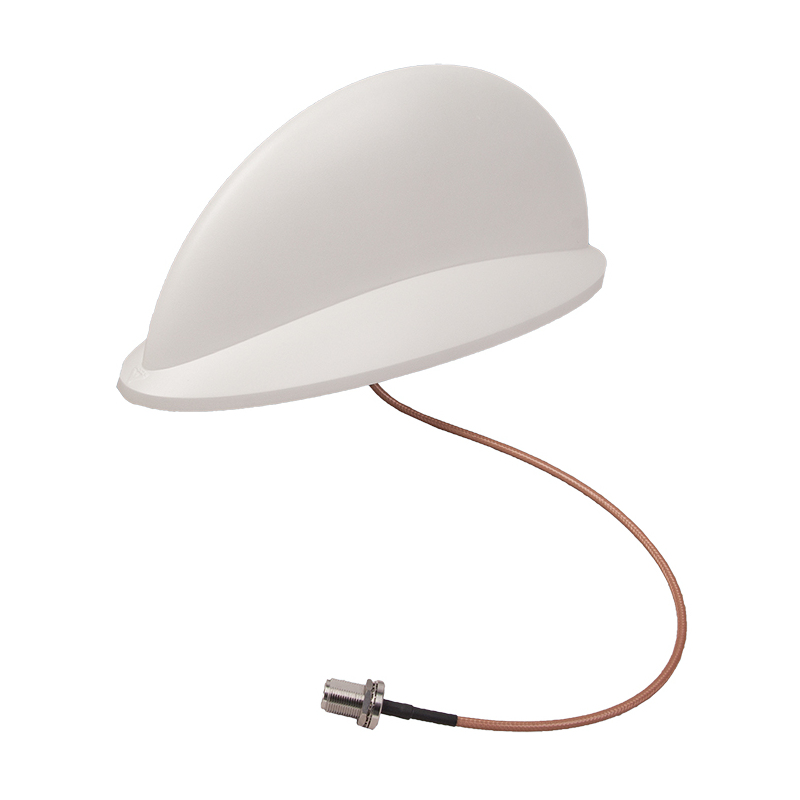

UWB-I 380-6000
Electrical
Model UWB-I 380-6000
Frequency 380 – 6000 MHz
Antenna Type Low profile multiband
Max. Input Power 50 W
Polarisation Vertical
Pattern Type Omnidirectional
Impedance 50 Ω
Gain -2.2dBd / 0dBi
VSWR < 2.0:1
Passive Intermodulation < -140 dBc (2 x 37 dBm)
Environmental
Operating temperature range -30 °C to +70 °C
Mechanical
Connection(s) N(f)
Materials Radome : Lexan
Flame retardent : UL 94 HB recognized
Chasis : Aluminium
Cable RG400 (length : 400 mm)
Colour White (RAL 9003)
Historic Brand Amphenol Procom
Dimensions 107 / 325 mm
Height Approx. 146 mm / 5.75 in.
Weight Approx. 0.65 kg / 1.43 lb.
  • Ground plane independent indoor DAS antenna .
  • Omnidirectional coverage for the 380 – 6000 MHz band.
  • Installation from abowe or below the ceiling.
  • Provided with external coaxial cable with N-female connector.
  • No need for external ground plane.
  • Two installation options.

No content found

This product doesn’t have any diagrams yet.

Model Product No. Add To Quote
Ultra Wideband Omnidirectional Antenna capable of supporting TETRA, GSM, DCS, PCS, UMTS, WiFi 2.4 and 5.6 GHz, 4G LTE, and WiMax 100000545

Login required

You need to be logged in into your account to view downloadable documents.

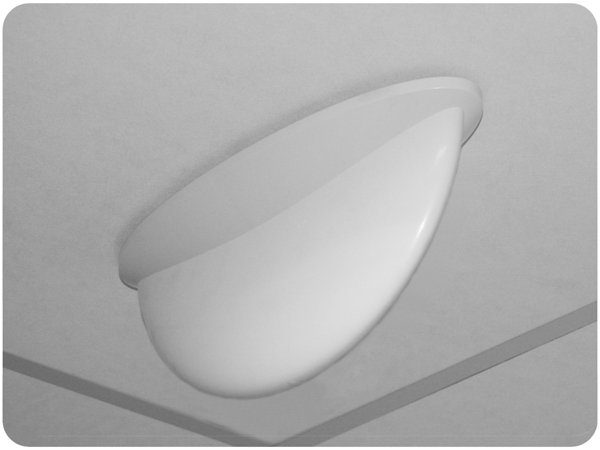

Ceiling mounted

Typical VSWR Curve (375 – 475 MHz)

Typical VSWR Curve (700 – 6000 MHz)

Installation – METHOD A (Gland installation)

(Ceiling thickness 3 – 44 mm)

  • Screw the gland unit on to the bottom.
  • Drill a hole in the ceiling (23 – 25mm dia.).
  • Pull the cable through the hole.
  • Mount the antenna with the nut and the washer



Installation – METHOD B
  • Separate the radome part (white plastic) from the base part by pulling the 2 parts from each other.
  • Drill 5 holes in the ceiling. 4 pcs. 6.3 mm dia. and 1 pcs. 23 – 25 mm dia.
  • Pull the cable through the 23 mm dia. hole.
  • Mount the base part to the ceiling with 4 screws (e.g. M6 screws) Screw height max 5 mm.
  • Snap the radome part to the base part

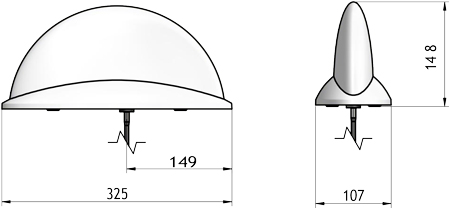

Antenna Dimension

All dimensions are given in mm.

3D Gain Plot

TETRA 380 MHz

UMTS 2100 MHz
LTE 750 MHz
 WIFI 2400 MHz
GSM 900 MHz


 LTE 2600 MHz

GSM 1850 MHz

WIMAX 5500 MHz
