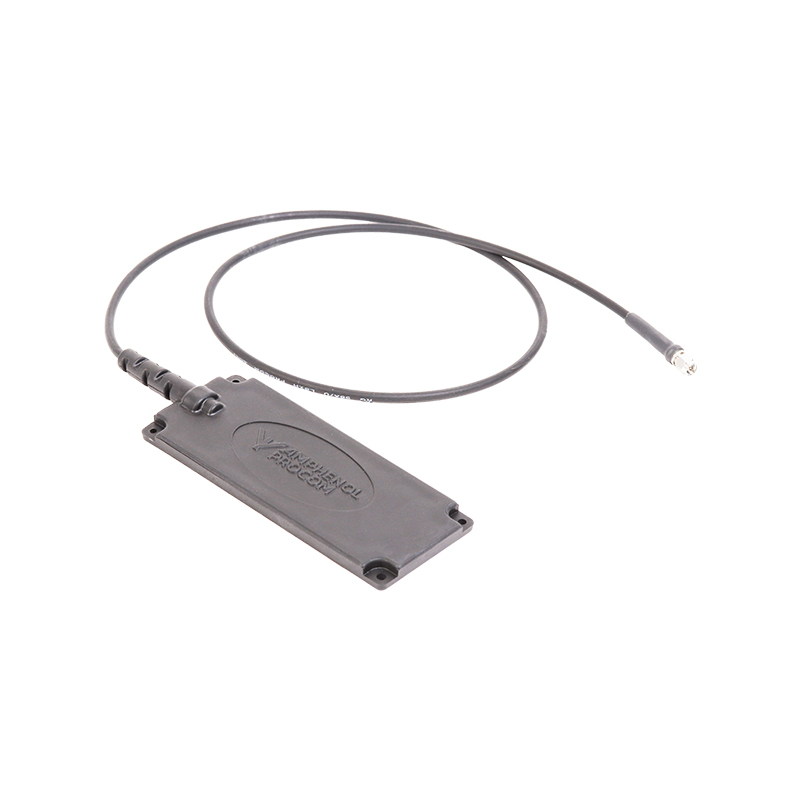

UWTA 600-6000

Wideband Terminal Antenna

Other Files

Electrical
Frequency	600 – 6000 MHz
Antenna Type	Wideband radiator
Max. Input Power	25 W
Polarisation	Vertical
Pattern Type	Omnidirectional
Impedance	50 Ω

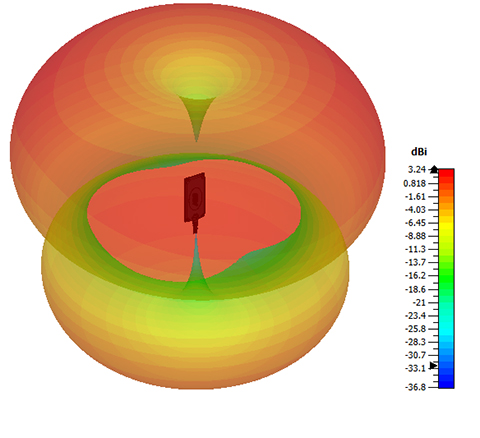

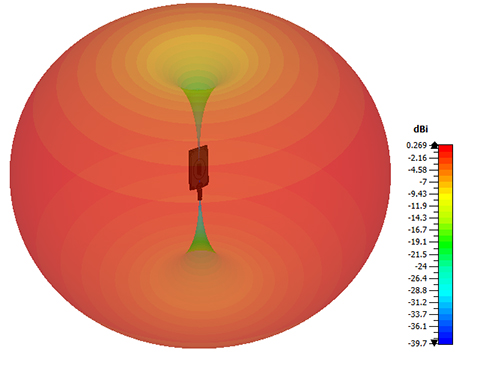

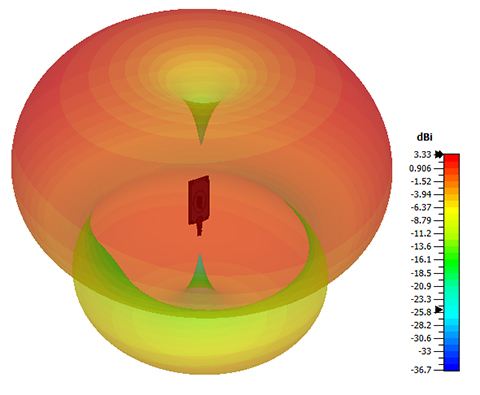

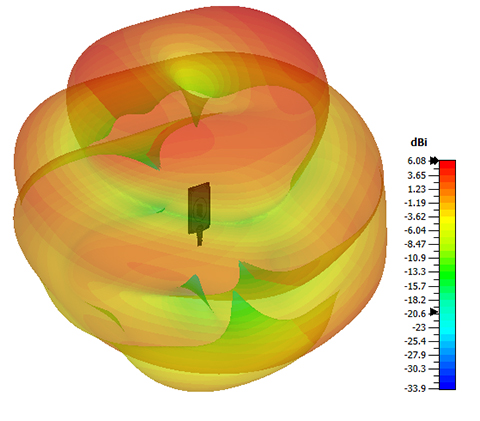

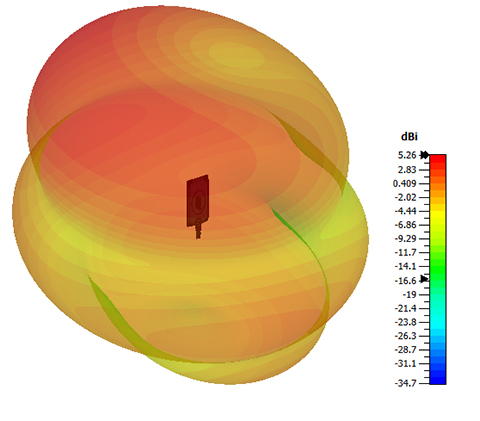

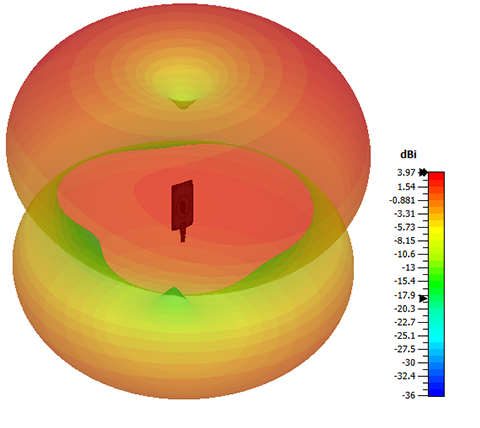

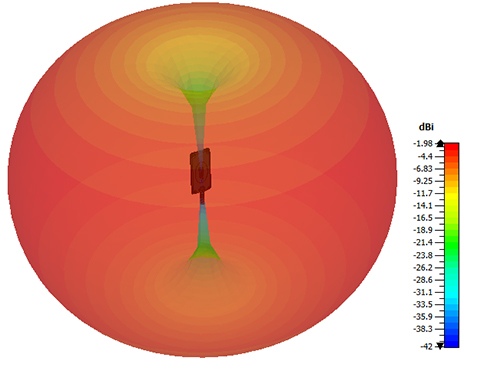

Gain	See radiation diagrams below

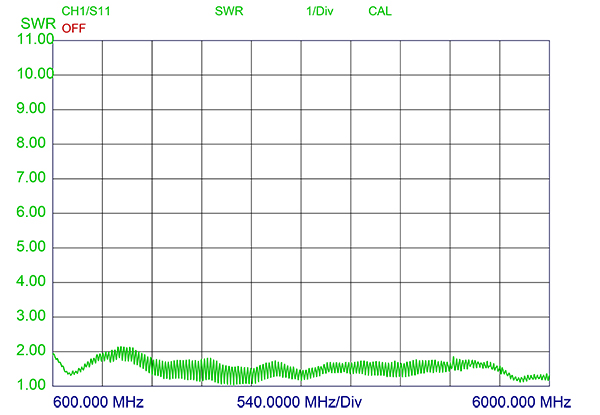

VSWR	< 2:0:1 (for 600 – 960 MHz / 1710 – 6000 MHz)

Environmental
Operating temperature range	-50 °C to +75 °C
Ingress Protection	IP67

Mechanical
Connection(s)	Low Loss RG58 + SMA Male IP67
Materials	TPS
Colour	Black (RAL 9005)
Antenna Mount Type	Adhesive Pad / 4 hole fixing (screws not supplied)

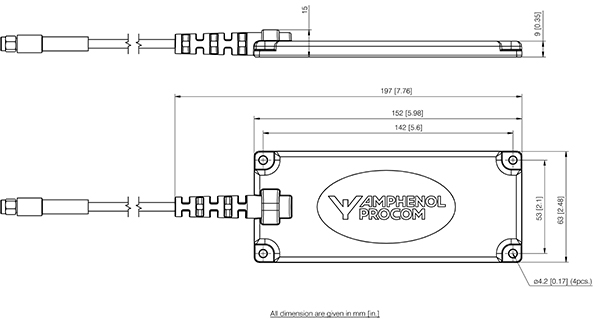

Dimensions	152 x 63 x 9 mm / 5.98 x 2.48 x 0.35 in.
Weight	Approx. 0.215 kg / 047 lb.
Mounting	4 x ø 4.2 mm

For Cellular, IoT and WiFi connections in 600 MHz – 6000 MHz frequency bands
2G/3G/4G – and 5G-ready
Low profile design which enables installation in locations where it is not practical for a normal antenna to be located.
Mount on glass, fibreglass, or other non-conductive surfaces.
Protected to IP67 for installation in all weather environments
