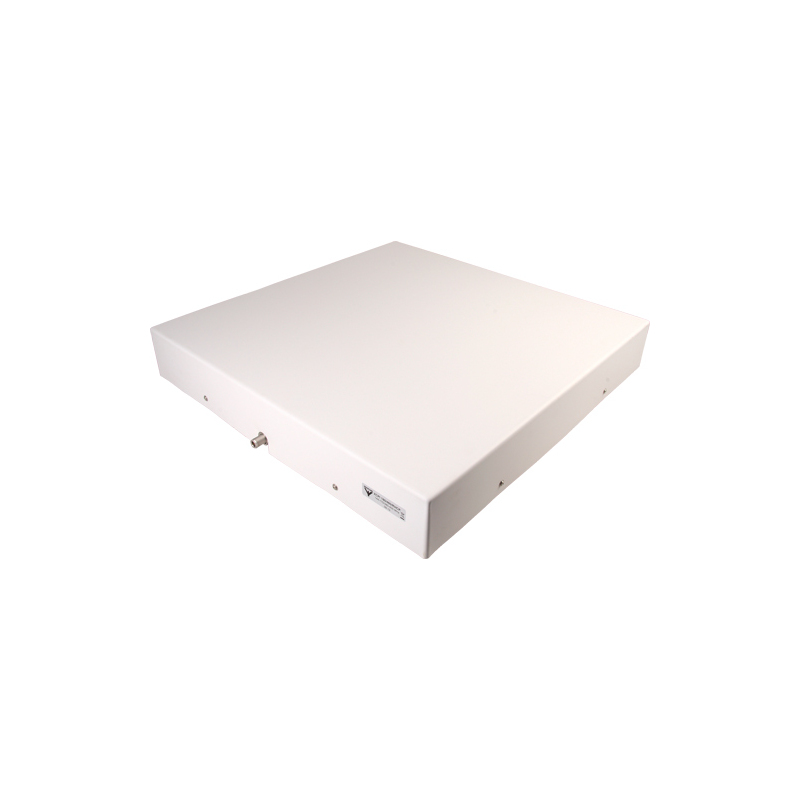

XCPI 160/RHCP

Indoor Right Hand Circular Polarized Antenna for the 160 Mhz Band

Find Out More
Data Sheet
CE Certification

Other Files

XCPI 160/RHCP
Electrical
Model XCPI 160/RHCP
Frequency 144 – 175 MHz
Antenna Type Right hand circularly polarized antenna
Max. Input Power 50 W
3 dB Beamwidth, H-Plane 60 °
Polarisation Circular
3 dB Beamwidth, E-Plane 60 °
Impedance 50 Ω
Gain 2 dBic (0 dBd)
In iBwave Yes
Environmental
Operating temperature range -30 °C to +75 °C
Mechanical
Connection(s) N(f)
Materials Cover : PS (white)
Chassis : Stainless steel
Colour Marine white
Historic Brand Amphenol Procom
Dimensions Approx. 608 x 608 x 90 mm /
23.94 x 23.94 x 3.54 in.
Weight Approx. 5.5 kg / 12.13 lb.
Mounting 5.5 mm dia. (4 holes)
For optimum performance a groundplane of 1 x 1 m is required
  • Low profile antenna for the 160 MHz band.
  • XCPI 160/RHCP is a Right Hand Circularly Polarized antenna for indoor use e.g. ceilings and walls inside ships and houses.
  • Circularly polarization is chosen to avoid out-of-phase signals.
  • Reduces flutter considerably.
  • Specially designed for closed rooms.
  • Covers 144 – 175 MHz with a radiation of approx. 2 dBic.
  • The antenna is carefully sealed with a discreet cover.
  • The connector is placed at one side to enable mounting close to a wall or a ceiling.

MOUNTING DETAILS (Dimensions excl. cover)

TYPICAL GAIN AND SWR CURVES

TYPICAL RADIATION PATTERN (E-PLANE)

This curve shows the radiation patterns in the vertical plane.

This curve shows the radiation patterns in the vertical plane.

TYPICAL RADIATION PATTERN (H-PLANE)

This curve shows the radiation patterns in the horizontal plane (horizontal coverage).

This curve shows the radiation patterns in the horizontal plane (horizontal coverage).
