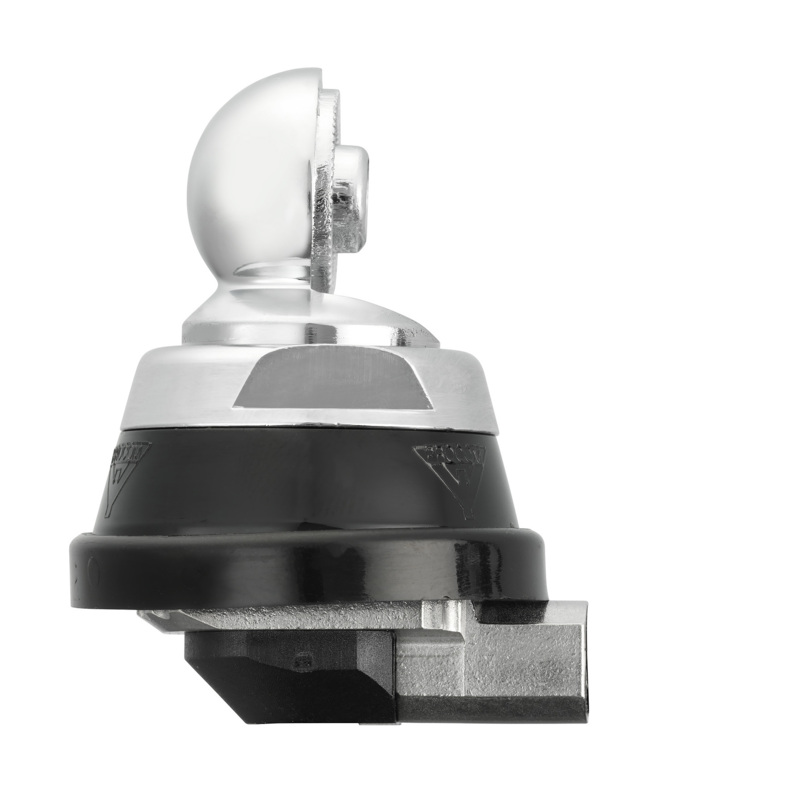

Z-Mount

Low Profile Mobile Antenna Mount with Toggle Joint

Find Out More
View Variations
Data Sheet
CE Certification

Other Files

Z-Mount

Quickly identify the correct ordering code.

Z-Mount
Electrical
Model Z-Mount
Frequency 0 – 470 MHz
Application Low-profile mount for mobile antennas
Mechanical
Installation Diameter 38 mm / 1.50 in.
Build-In Depth 10.5 mm
Materials Stainless steel
Bright or black chromed brass
Weather- and shockproof plastics
Installation Torque 7.5 ± 1 Nm
Colour Black or bright and black
Historic Brand Amphenol Procom
Height Approx. 40 mm / 1.57 in.
Whip Connection Toggle joint (for wing screw or hat screw with key)
Weight Z-version: Approx. 90 g / 0.19 lb.
ZP4-version: Approx. 230 g / 0.51 lb.
Mounting 21 mm dia. hole (For roof thicknesses 2 mm up to 7.5 mm mounting hole should be 22 mm dia.)
Mounting Plate Thickness Max. 2.0 mm (Models up to 7.5 mm on request)
  • Can be used together with all Amphenol Procom mobile antenna whips provided with toggle joint.
  • Installation possible everywhere on the car.
  • Particularly well suited for rooftop-mounting because of very low internal protrusion and ability to be installed exclusively with access from the outside. Models with roof thickness from 2 mm to 7.5 mm mounting from the inside.
  • Hole diameter: 21 mm.
  • Mounting body made of stainless steel !
  • Wide variety of antenna whips available in the frequency range up to 470 MHz.
  • Choice between two connection principles:
  • Z-mount : FME-connection (supplied without cable).
  • ZP4-mount : Permanently attached 4 m cable terminated with FME-connector.
  • ECE R118.02 approved cable.
  • Available in bright or black (black plastic parts for both versions).

No content found

This product doesn’t have any diagrams yet.

Model Product No. Additional Information Add To Quote

Z-Mount

 130000396 Z-mount (bright) with FME-system

BZ-Mount

 130000398 BZ-mount (black) with FME-system

ZP4-Mount

 130000410 ZP4-mount (bright) with 4 m cable and FME-connector

BZP4-Mount

 130000412 BZP4-mount (black) with 4 m cable and FME-connector

ZP5

 130000411 ZP5-mount (bright) with 5 m cable and FME-connector

BZP5-Mount

 130000408 BZP5-mount (black) with 5 m cable and FME-connector

Login required

You need to be logged in into your account to view downloadable documents.

FME-System Accessories – Note

For further information about other types of FME-cables and FME-connectors, please compare the cable and connector data sheets under accessories in our catalogue.

Installation

The Z-mount is designed for mounting in a 21 mm dia. hole.

The whip is fastened to the mount by means of our standard ball joint and wing screw system. The adjustable ball joint ensures that the whip can always be mounted in a vertical position independent of the angle of the installation spot.

The Z-mount is particularly well suited for mounting on car roofs because of its ability to be installed exclusively with access from the outside. The Z-mount for roof thickness from 2 mm to 7.5 mm must be mounted from the inside.

However, the antenna can be installed anywhere on the car, as the Z-mount is equally well suited for mounting on e.g. trunk or wing.

A good contact surface on the inside of the car body must always be ensured, thus enabling the base plate to get in direct contact with the metal parts of the car, which is of utmost importance for proper performance of the antenna.

1. Installation dimensions

Z Mount 21 22 38 GB

2. Installation step

Z Mount inst step samlet GB

Do not use sealer on rubber gasket or other places.

Dimensions

Z mount dimension

Please note

The whips are normally installed on the mount by means of the standard wing screw, but may also be installed using the optional hat screw with key (accessory item).
