ZG-Mount

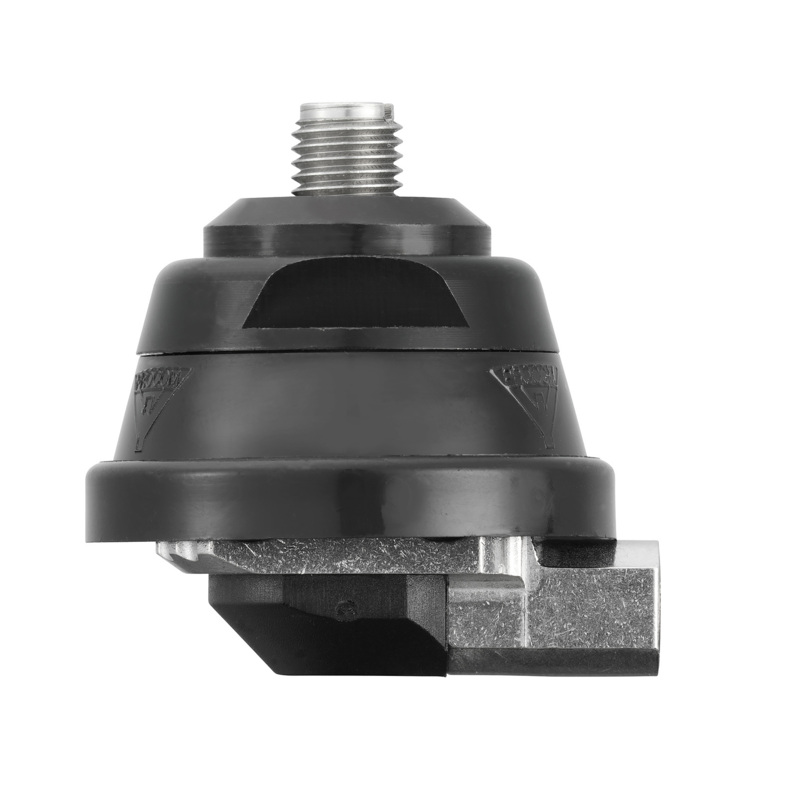

Low Profile Mobile Antenna Mount with Thread Stud

Find Out More
View Variations
Data Sheet
CE Certification

Other Files

ZG-Mount

Quickly identify the correct ordering code.

ZG-Mount
Electrical
Model ZG-Mount
Frequency 0 – 1300 MHz
Application Low-profile mount for mobile antennas
Mechanical
Installation Diameter 38 mm / 1.50 in.
Build-In Depth 10.5 mm
Materials Stainless steel
Black chromed brass
Environment-proof plastics
Installation Torque 7.5 ± 1 Nm
Colour Black
Historic Brand Amphenol Procom
Height Approx. 28 mm / 1.10 in.
Whip Connection M8 x 1 thread stud
Weight ZG-version : Approx. 70 g / 0.15 lb.
ZGP4-version: Approx. 210 g / 0.46 lb.
Mounting 21 mm dia. hole
Mounting Plate Thickness Max. 2 mm
  • Used together with all Amphenol Procom ZG-type antenna whips.
  • M8x1 thread whip-mounting system.
  • For installation on horizontal surfaces (roof top or trunk lid) in a 21 mm dia. hole.
  • Particularly well suited for rooftop-mounting because of very low internal protrusion and ability to be installed exclusively with access from the outside.
  • Complete line of whips available for all communications bands up to 1300 MHz.
  • Mounting body made of stainless steel!
  • Choice between two connection principles:
  • ZG-mount: FME-connection (supplied without cable).
  • ZGP4-mount: Permanently attached 4 m cable terminated with FME-connector.
  • ECE R118.02 approved cable.

No content found

This product doesn’t have any diagrams yet.

Model Product No. Model Add To Quote

ZG-Mount

 130000377 ZG-Mount

ZGP4-Mount

 130000388 ZGP4-Mount

ZGP5-Mount

 130000389 ZGP5-Mount

Login required

You need to be logged in into your account to view downloadable documents.

FME-System Accessories – Note

For further information about other types of FME-cables and FME-connectors, please compare the cable and connector data sheets under accessories in our catalogue.

Installation

The ZG-mount is designed for mounting in a 21 mm dia. hole on horizontal surfaces as e.g. roof top or trunk lid, with access from the outside only.

A good contact surface on the inside of the car body must always be ensured, thus enabling the base plate to get in direct contact with the metal parts of the car, which is of utmost importance for proper performance of the antenna.

The ZG-mount is provided with an M8 x 1 thread mount system. This construction meets the demand for a low profile mobile mount with a slim appearance and with protection against theft of the antenna whip.

When cleaning the car in car-washing machines, the whip is easily removed using a fork spanner. The whip is refitted again by screwing it onto the thread stud and tightening it with the spanner.

1. Installation Dimension

2. Installation Steps

ZG Mount inst step samlet GB

Do not use sealer on rubber gasket or other places.
