| Electrical | |
| Frequency |
690 – 870 MHz870 – 960 MHz1700 – 1900 MHz1900 – 2200 MHz2500 – 2700 MHz
|
|---|---|
| Max. Input Power | 150 W |
| 3 dB Beamwidth, H-Plane |
53 °50 °48 °52 °78 °
|
| Polarisation | Vertical |
| 3 dB Beamwidth, E-Plane |
46 °45 °40 °40 °38 °
|
| Gain |
8.8 dBd9.8 dBd9.4 dBd8.8 dBd7.3 dBd
|
| VSWR | < 1.5:1 |
| Front-To-Back Ratio | > 25 dB typical |
| Passive Intermodulation | -153dBc (3rd Order, 2 x Tx @ 43dBm) |
| In iBwave | Yes |
| Environmental | |
| Survival Wind Speed | 200 km/h 360 km/h using 0900911/00 front support kit 381 km/h using 2x 0900911/00 front support kit |
|---|---|
| Mechanical | |
| Connection(s) | 7/16 DIN(f) |
|---|---|
| Historic Brand | Jaybeam |
| Dimensions | 1335 x ø180 mm / 52.5 x ø7.0 in. |
| Wind Load | 250 N (160km/h) |
| Weight | 7 kg / 15.43 lb |
| Mounting Bracket | 0300284/00 + U-bolts to match mounting pipe diameter (Ordered Separately) |
| Mounting Accessories | Wall Mount: 0900911/00 , Front Support XSL9255121 Wall Mount, Rear Support XSL9254928 Tunnel mount kit |
RADIATION PATTERNS
H-Plane | 2100 MHz

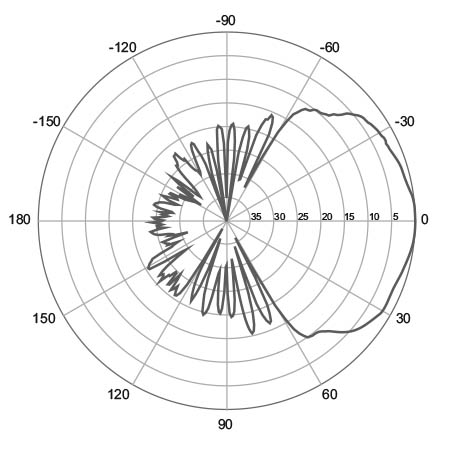

RADIATION PATTERNS

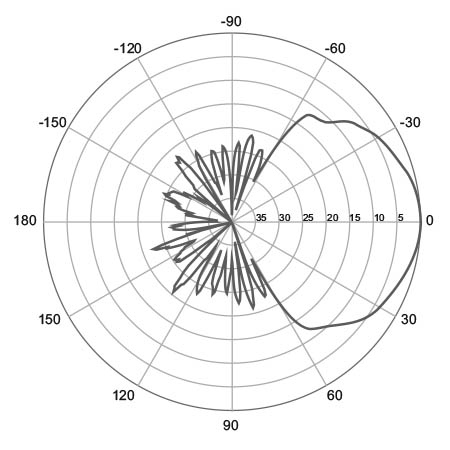

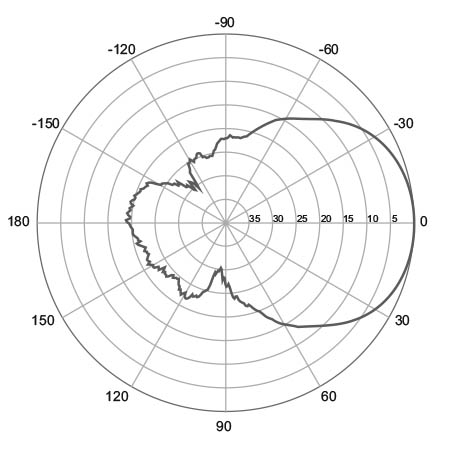

H-Plane | 1800 MHz
RADIATION PATTERNS

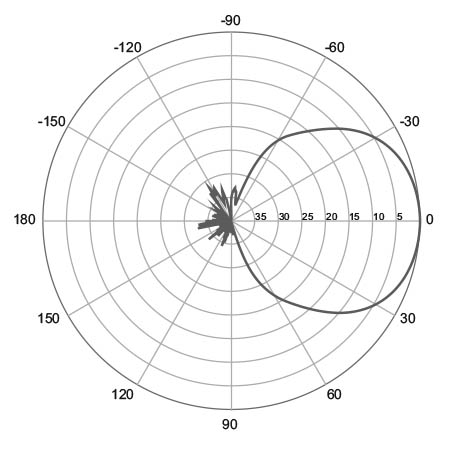

H-Plane | 900 MHz
RADIATION PATTERNS
H-Plane | 700 MHz
RADIATION PATTERNS

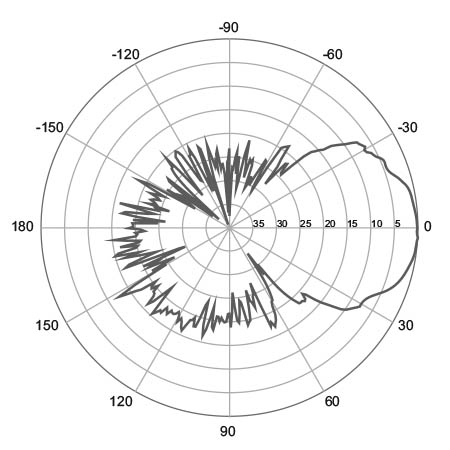

E-Plane | 2700 MHz
RADIATION PATTERNS

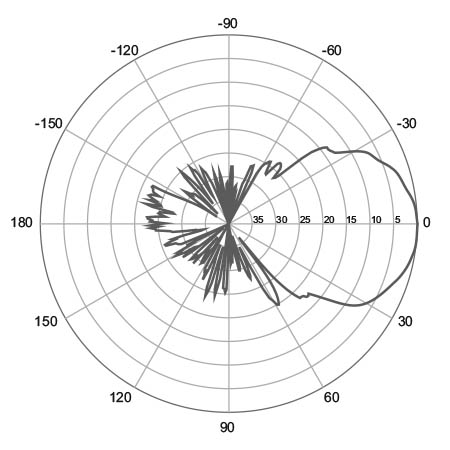

E-Plane | 2100 MHz
RADIATION PATTERNS

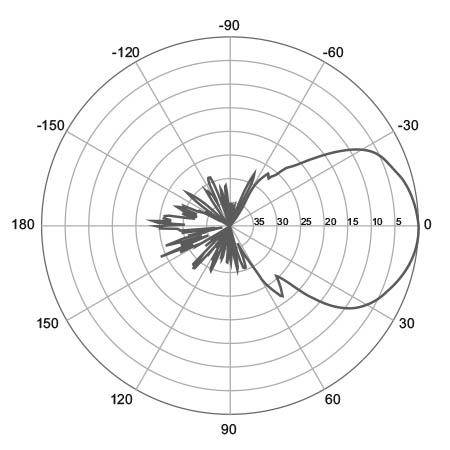

E-Plane | 1800 MHz

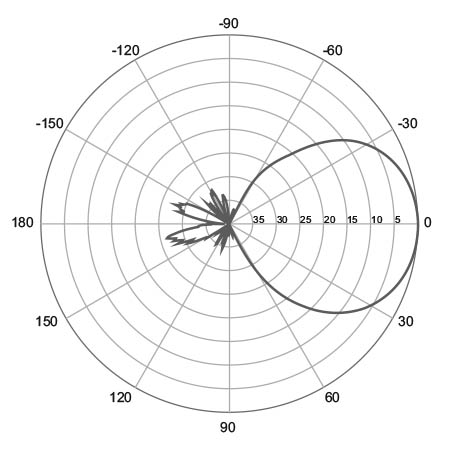

RADIATION PATTERNS
E-Plane | 900 MHz
MOUNTING & DIAGRAMS
Mounting Accessories – XSL9254928 Tunnel mount kit
RADIATION PATTERNS

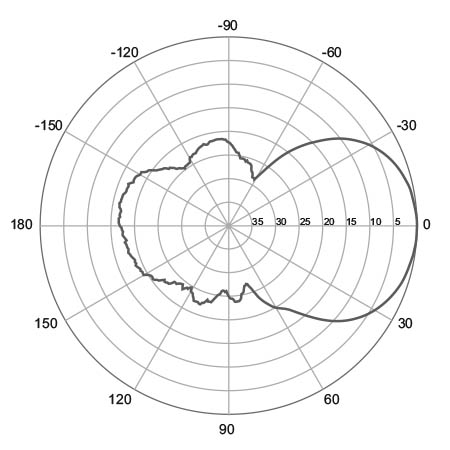

E-Plane | 700 MHz
RADIATION PATTERNS

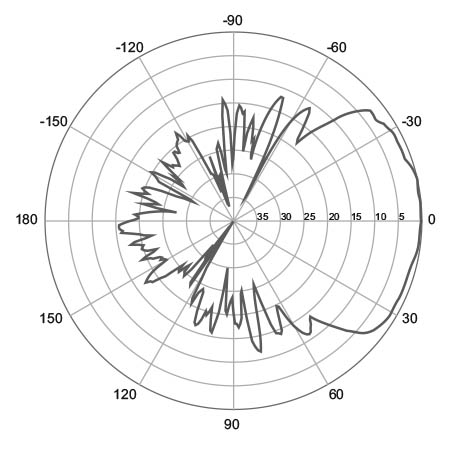

H-Plane | 2700 MHz
| Model | Product No. | Add To Quote |
|---|---|---|
| Wideband log periodic 690 – 2700MHz, 7/16 | 7478200 |
