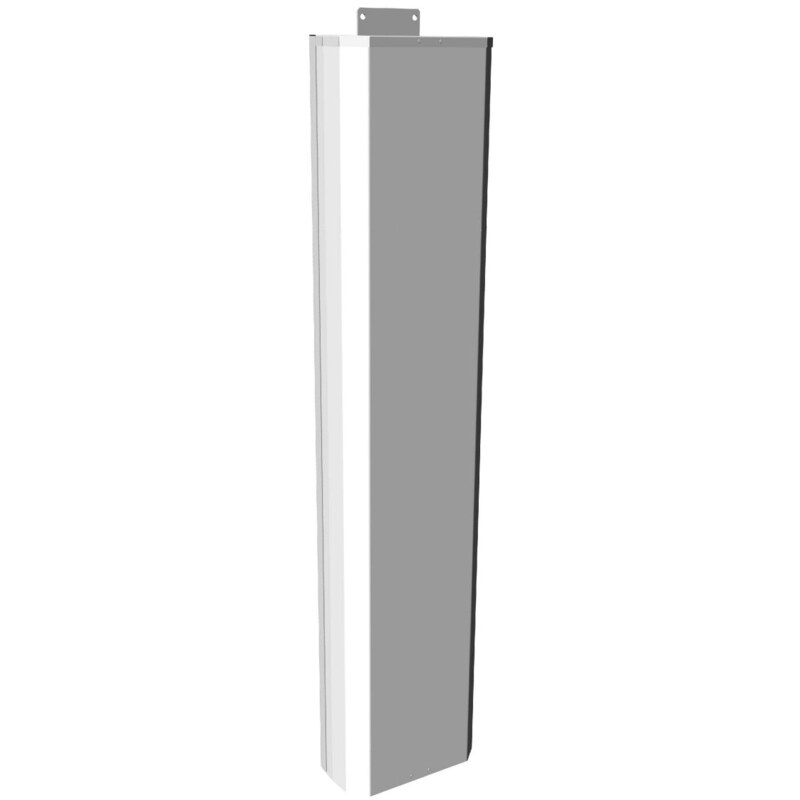

VPOL panel antenna 90°, 13 dBi, 380 – 470 MHz
Find Out MoreOther Files
| Electrical | |
| Model | 760.90.13.00 |
|---|---|
| Frequency | 380 – 470 MHz |
| Max. Input Power | 400 W |
| 3 dB Beamwidth, H-Plane | 90° ± 5° |
| Polarisation | Vertical |
| 3 dB Beamwidth, E-Plane | 17° ± 2° |
| Impedance | 50 Ω |
| Gain | 10.9 dBd (13 dBi) |
| VSWR | < 1.5:1 |
| Front-To-Back Ratio | > 20 dB |
| Passive Intermodulation | -153 dBc (3rd Order, 2 x Tx @ 43 dBm) |
| Antistatic Protection | All metal parts DC-grounded (Connector shows a DC-short) |
| Environmental | |
| Operating temperature range | -40 °C to +75 °C |
|---|---|
| Survival Wind Speed | 270 km/h |
| Ingress Protection | IP56 |
| Mechanical | |
| Connection(s) | 7/16 DIN(f) Also available with N(f) or 4.3-10(f) |
|---|---|
| Housing Material | Aluminium Alloy, Marine Grade 5083 |
| Radome Material / Colour | White ASA, UV Resistant |
| Historic Brand | Skymasts |
| Dimensions | 1840 x 400 x 170 mm / 72.44 x 15.75 x 6.69 in. |
| Wind Load | 593 N (160 km/h) |
| Weight | Approx. 13 kg / 28.66 lb. |
| Alternate Mounting Bracket | Tilt bracket : 766.7010 (0 – 12°) 766.7020 (0 – 22°) (Ordered Separately) |

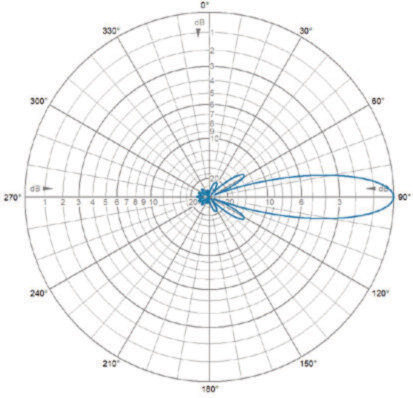

RADIATION PATTERNS
E-Plane | 425 MHz

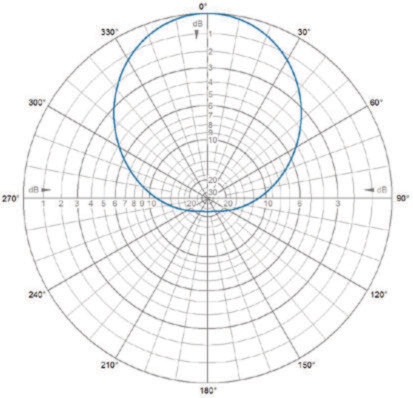

RADIATION PATTERNS
H-Plane | 425 MHz
| Model | Product No. | Frequency | Additional Information | Add To Quote |
|---|---|---|---|---|
|
VPOL panel antenna 90°, 13 dBi |
760.90.13.00-7/16 DIN(f) | 380 – 470 MHz | 0° Electrical Tilt | |
|
VPOL panel antenna 90°, 13 dBi |
760.90.13.10-7/16 DIN(f) | 380 – 470 MHz | 10° Electrical Tilt | |
|
VPOL panel antenna 90°, 13 dBi |
760.90.13.00-N(f) | 380 – 470 MHz | N(f) termination (not PIM specified) | |
|
