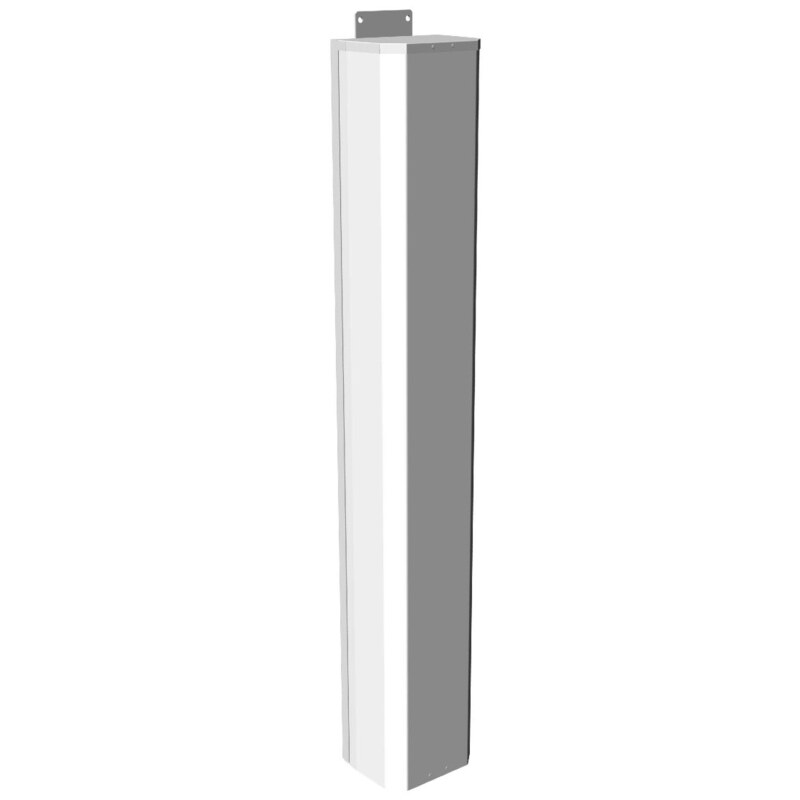

XPOL panel antenna 120°, 11 dBi, 380 – 470 MHz
Find Out MoreOther Files
| Electrical | |
| Model | 766.12.11.00 |
|---|---|
| Frequency | 380 – 470 MHz |
| Max. Input Power | 2 x 400 W |
| 3 dB Beamwidth, H-Plane | 115° ± 5° |
| Polarisation | ±45° |
| Peak Instantaneous Power (PIP) | 25 kW |
| 3 dB Beamwidth, E-Plane | 18° ± 2° |
| Impedance | 50 Ω |
| Gain | 8.9 dBd (11 dBi) |
| Port-Port Isolation | ≥ 27dB |
| VSWR | < 1.5:1 |
| Front-To-Back Ratio | > 20 dB |
| Cross Polar Discrimination | 30 dB |
| Passive Intermodulation | -153 dBc (3rd Order, 2 x Tx @ 43 dBm) |
| Antistatic Protection | All metal parts DC-grounded (Connector shows a DC-short) |
| Environmental | |
| Operating temperature range | -40 °C to +75 °C |
|---|---|
| Survival Wind Speed | 270 km/h |
| Ingress Protection | IP56 |
| Mechanical | |
| Connection(s) | 2 x 7/16(f) Also available with N(f) or 4.3-10(f) |
|---|---|
| Housing Material | Aluminium Alloy, Marine Grade 5083 |
| Radome Material / Colour | White ASA, UV Resistant |
| Historic Brand | Skymasts |
| Dimensions | 1840 x 300 x 216 mm |
| Wind Load | 445 N (160 km/h) |
| Weight | Approx. 11 kg / 24.25 lb. |
| Alternate Mounting Bracket | Tilt bracket : 766.7010 (0 – 12°) 766.7020 (0 – 22°) (Ordered Separately) |

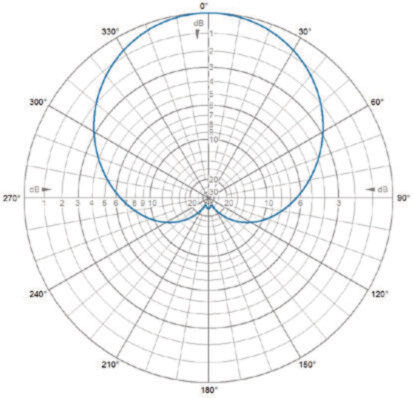

RADIATION PATTERNS
H-Plane | 425 MHz

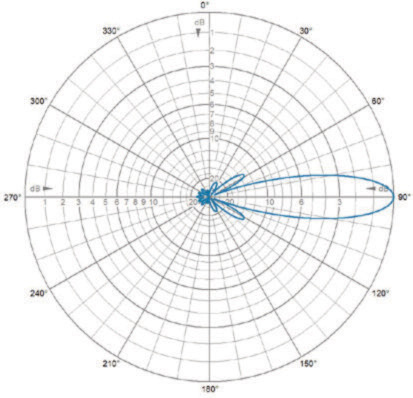

RADIATION PATTERNS
E-Plane | 425 MHz
| Model | Product No. | Frequency | Additional Information | Add To Quote |
|---|---|---|---|---|
|
XPOL panel antenna 120°, 11 dBi |
766.12.11.00-7/16(f) | 380 – 470 MHz | 7/16(f) termination | |
|
XPOL panel antenna 120°, 11 dBi |
766.12.11.00-N(f) | 380 – 470 MHz | N(f) termination (not PIM specified) | |
|
XPOL panel antenna 120°, 11 dBi |
Contact_70 | 380 – 470 MHz | 4.3-10(f) termination |
