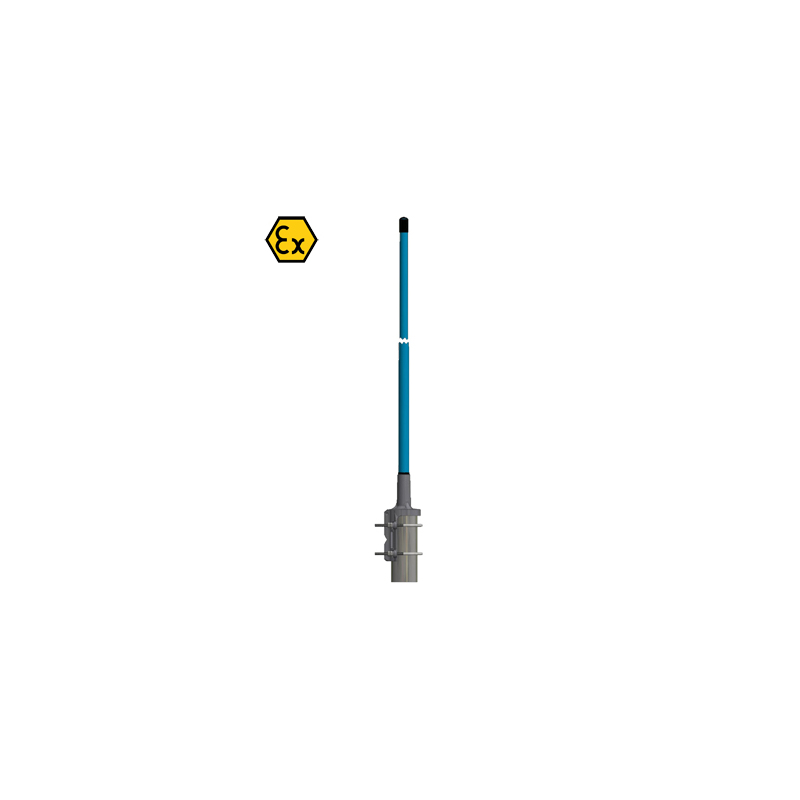

CXL 150-1LW-SS-Ex

ATEX certified, 0 dBd, Omnidirectional Base Station Antenna for the 138 – 175 MHz Band in Hazardous areas

Find Out More
View Variations
Data Sheet
CE Certification

Other Files

CXL 150-1LW-SS-Ex

Quickly identify the correct ordering code.

CXL 150-1LW-SS-Ex
Electrical
Model CXL 150-1LW-SS-Ex
Frequency 18 – 21 MHz wide frequency segments within 138 – 175 MHz.
See ordering designations
Antenna Type Coaxial dipole, broad-banded
Special spec. info Max. RF Input Power due to max. EIRP in ATEX Environment *:

Group IIA : 35.6 dBm (3.6 W)
Group IIB : 33.3 dBm (2.1 W)
Group IIC : 30.8 dBm (1.2 W)
3 dB Beamwidth, H-Plane Omnidirectional
Polarisation Vertical
Pattern Type Omnidirectional
3 dB Beamwidth, E-Plane 80 °
Impedance 50 Ω
Gain 0 dBd (2.2 dBi)
VSWR < 1.5:1
Bandwidth 18 – 21 MHz depending on model
Antistatic Protection All metal parts DC-grounded (Connector shows a DC-short)
HCM Code(s) HCM000ND00, 040DE00
Environmental
Operating temperature range -30 °C to +60 °C
Survival Wind Speed 200 km/h
Ingress Protection IP66
Mechanical
Connector Torque N(f) : 0.7 – 1.1 Nm
Wind Area 0.027 sq. m / 0.29 sq. ft
Materials Radome : Polyurethane-coated glass fibre
Mounting bracket : Stainless acid-proof steel (AiSi 316L)
U-bolt and fittings : Stainless steel (AiSi 316)
Installation Torque 3 Nm
Colour Blue (RAL 5015)
Historic Brand Amphenol Procom
Height Approx. 1300 mm / 51.18 in.
Wind Load 32 N (160 km/h)
Dia. At Top End 17 mm / 0.67 in.
Weight Approx. 1.25 kg / 2.76 lb.
Dia. At Bottom End 23.6 mm / 0.93 in.
Mounting On 16 to 54 mm / 0.63 to 2.13 in. dia. mast tube
ATEX Marking II 3G Ex nA IIC T6
  • CXL 150-1LW-SS-Ex is a 0 dBd, vertically polarized, omnidirectional base station Antenna which covers the 138 – 175 MHz band in three models.
  • The antenna is specified as an ATEX antenna for use in zone 2 in potentially explosive areas.
  • Before installing the antenna, please read the ATEX Product Manual carefully.
  • The antenna is suitable for use in gas groups IIA, IIB and IIC in zone 2.
  • It’s only necessary to install an ATEX grounding Kit on the LW-SS-Ex bracket, when the point of installation has a different electrical potential than the system.
  • The accompanying U-bolts and fittings are made of stainless steel.
  • All metal parts in the antenna are DC-grounded. Consequently, the antenna shows a DC-short across the coaxial cable.

No content found

This product doesn’t have any diagrams yet.

Model Product No. Frequency Add To Quote

CXL 150-1LW-SS-Ex/s

 115000005 138 – 156 MHz

CXL 150-1LW-SS-Ex/l

 115000004 144 – 165 MHz

CXL 150-1LW-SS-Ex/h

 115000003 155 – 175 MHz

Login required

You need to be logged in into your account to view downloadable documents.

Typical Gain and VSWR curve

Typical Radiation Pattern (E-Plane)

Typical Radiation Pattern (H-Plane)

Mounting Details

LW-SS-Ex-beslag mont iso GB 280x

Calculation of max. Antenna input power in different ATEX groups
ATEX GROUPMAX. EIRP POWERANTENNA GAINMAX INPUT POWER
IIA 37.7 dBm (6.0 W) 0 dBd / 2.15 dBi 35.6 dBm (3.6 W)
IIB 35.4 dBm (3.5 W) 0 dBd / 2.15 dBi 33.3 dBm (2.1 W)
IIC 33.0 dBm (2.0 W) 0 dBd / 2.15 dBi 30.8 dBm (1.2 W)

*See the ATEX Product Manual (safety and mounting instructions) and related EU DECLARATION OF CONFORMITY ATEX Directive 2014/34/EU.
