CXL 1700-2700LW-SS-Ex

ATEX certified, 0 dBd, Broad-Band, Omnidirectional Base Station Antenna for the 1700 – 2700 MHz Band in Hazardous areas

Other Files

Electrical
Model	CXL 1700-2700LW-SS-Ex
Frequency	1700 – 2700 MHz
Antenna Type	Coaxial, collinear antenna, broad-banded
Special spec. info	Max. RF Input Power due to max. EIRP in ATEX Environment *: Group IIA : 34.6 dBm (2.9 W) Group IIB : 33.3 dBm (1.6 W) Group IIC : 29.8 dBm (0.9 W)
3 dB Beamwidth, H-Plane	Omnidirectional
Polarisation	Vertical
3 dB Beamwidth, E-Plane	22 °
Impedance	50 Ω
Gain	1 dBd (max. gain) 0 dBd (typ. gain)
VSWR	< 2.0:1
Bandwidth	≥ 1000 MHz
Antistatic Protection	All metal parts DC-grounded (Connector shows a DC-short)
HCM Code(s)	HCM000ND00, 040DE00

Environmental
Operating temperature range	-30 °C to +60 °C
Survival Wind Speed	200 km/h
Ingress Protection	IP66

Mechanical
Connector Torque	N(f) : 0.7 – 1.1 Nm
Wind Area	0.007 sq. m / 0.08 sq. ft
Materials	Radome: Polyurethane-coated glass fibre Mounting bracket: Stainless acid-proof steel (AiSi 316L) U-bolt and fittings: Stainless steel (AiSi 316)
Installation Torque	3 Nm
Colour	Blue (RAL 5015)
Historic Brand	Amphenol Procom
Height	Approx. 380 mm / 14.96 in.
Wind Load	7 N (160 km/h)
Dia. At Top End	22 mm / 0.87 in.
Weight	Approx. 1 kg / 2.20 lb.
Dia. At Bottom End	23 mm / 0.91 in.
Mounting	On 16 to 54 mm / 0.63 – 2.13 in. dia. mast tube
ATEX Marking	II 3G Ex nA IIC T6

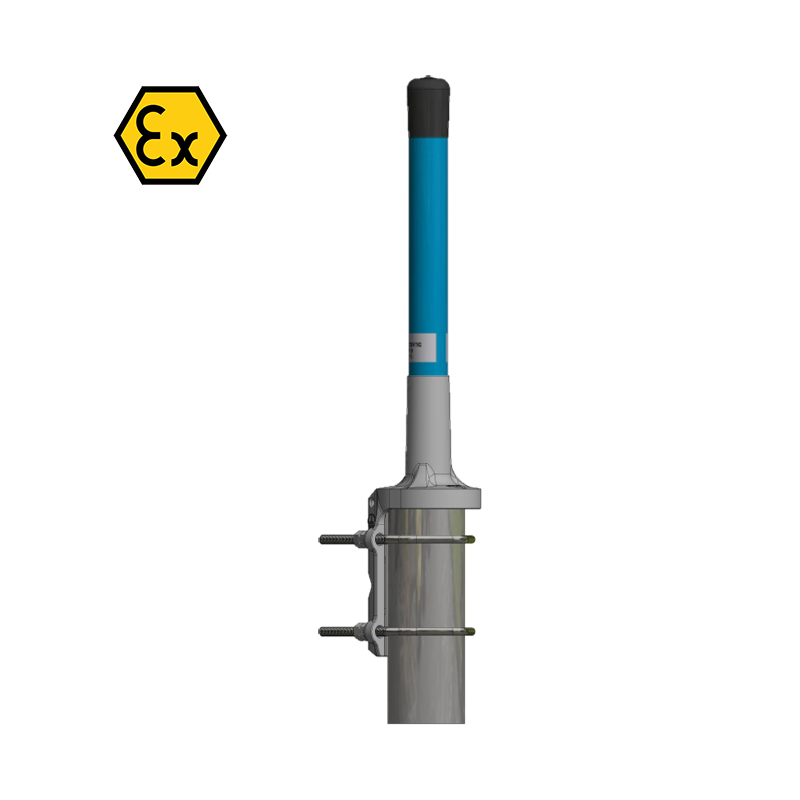

CXL 1700-2700LW-SS-Ex is a 0 dBd, vertically polarized, broad-band, omnidirectional base station antenna which covers the 1700 – 2700 MHz band.
The antenna is specified as an ATEX antenna for use in zone 2 in potentially explosive areas.
Before installing the antenna, please read the ATEX Product Manual carefully.
The antenna is suitable for use in gas groups IIA, IIB and IIC in zone 2.
It’s only necessary to install an ATEX grounding Kit on the LW-SS-Ex bracket, when the point of installation has a different electrical potential than the system.
The accompanying U-bolts and fittings are made of stainless steel.
The antenna element is sealed in a high-quality glass fibre tube.
All metal parts in the antenna are DC-grounded. Consequently, the antenna shows a DC-short across the coaxial cable.

This product doesn’t have any diagrams yet.

Model	Product No.	Add To Quote
ATEX certified, 0 dBd, Broad-Band, Omnidirectional Base Station Antenna for the 1700 – 2700 MHz Band in Hazardous areas	115000017

You need to be logged in into your account to view downloadable documents.

ATEX GROUP	MAX. EIRP POWER	ANTENNA GAIN	MAX INPUT POWER
IIA	37.7 dBm (6.0 W)	0 dBd / 2.15 dBi	34.6 dBm (2.9 W)
IIB	35.4 dBm (3.5 W)	0 dBd / 2.15 dBi	33.3 dBm (1.6 W)
IIC	33.0 dBm (2.0 W)	0 dBd / 2.15 dBi	29.8 dBm (0.9 W)
