CXL 2400-3LW-SS-Ex

ATEX certified, 3 dBd, Omnidirectional Base Station Antenna for the 2200 – 2700 MHz Band in Hazardous areas

Find Out More
View Variations
Data Sheet
CE Certification

Other Files

CXL 2400-3LW-SS-Ex

Quickly identify the correct ordering code.

CXL 2400-3LW-SS-Ex
Electrical
Model CXL 2400-3LW-SS-Ex
Frequency 100 – 200 MHz wide frequency segments within
2200 – 2700 MHz. See ordering designations
Antenna Type Coaxial, broad-band, collinear antenna
Special spec. info Max. RF Input Power due to max. EIRP in ATEX Environment *:

Group IIA : 32.6 dBm (1.8 W)
Group IIB : 30.3 dBm (1.0 W)
Group IIC : 27.8 dBm (0.6 W)
Polarisation Vertical
Impedance 50 Ω
Gain 5 dBi 3 dBd
VSWR ≤ 2.0, typ. ≤ 1.5
Bandwidth For l, m and h models : ≥ 200 MHz @ VSWR ≤ 2.0
For ll-model: ≥ 100 MHz @ VSWR ≤ 2.0
Antistatic Protection All metal parts DC-grounded (Connector shows a DC-short)
HCM Code(s) HCM000ND00, 015DE40
Half Power Beamwidth 22°
Environmental
Operating temperature range -30 °C to +60 °C
Survival Wind Speed 200 km/h
Ingress Protection IP66
Mechanical
Connector Torque N(f) : 0.7 – 1.1 Nm
Materials Radome: Polyurethane-coated glass fibre
Mounting bracket: Stainless acid-proof steel (AiSi 316L)
U-bolt and fittings: Stainless steel (AiSi 316)
Installation Torque 3 Nm
Colour Blue
Max. Wind Speed 200 km/h / 124.27 mph.
Historic Brand Amphenol Procom
Height Approx. 700 mm / 27.56 in.
Wind Load Approx. 26 N @ 160 km/h / 99.42 mph.
Wind Surface Approx. 0.02 m² / 0.22 ft²
Dia. At Top End 22 mm / 0.87 in.
Weight Approx. 850 g / 1.87 lb.
Dia. At Bottom End 23 mm / 0.91 in.
Mounting On 16 to 54 mm / 0.63 – 2.13 in. dia. mast tube
ATEX Marking II 3G Ex nA IIC T6
  • CXL 2400-3LW-SS-Ex is a 3 dBd, vertically polarized, omnidirectional base station Antenna which covers the 2200 – 2700 MHz band in four models.
  • The antenna is specified as an ATEX antenna for use in zone 2 in potentially explosive areas.
  • Before installing the antenna, please read the ATEX Product Manual carefully.
  • The antenna is suitable for use in gas groups IIA, IIB and IIC in zone 2.
  • It’s only necessary to install an ATEX grounding Kit on the LW-SS-Ex bracket, when the point of installation has a different electrical potential than the system.
  • The accompanying U-bolts and fittings are made of stainless steel.
  • The antenna element is sealed in a high-quality glass fibre tube.
  • All metal parts in the antenna are DC-grounded. Consequently, the antenna shows a DC-short across the coaxial cable.

No content found

This product doesn’t have any diagrams yet.

Model Product No. Frequency Add To Quote

CXL 2400-3LW-SS-Ex/ll

 Contact_100 2200 – 2300 MHz

CXL 2400-3LW-SS-Ex/l

 Contact_101 2300 – 2500 MHz

CXL 2400-3LW-SS-Ex/m

 115000022 2400 – 2600 MHz

CXL 2400-3LW-SS-Ex/h

 Contact_102 2500 – 2700 MHz

CXL 2400-3LW-SS-Ex/h

 Contact_76 2500 – 2700 MHz

Login required

You need to be logged in into your account to view downloadable documents.

Calculation of max. Antenna input power in different ATEX groups
ATEX GROUPMAX. EIRP POWERANTENNA GAINMAX INPUT POWER
IIA 37.7 dBm (6.0 W) 3 dBd / 5.15 dBi 32.6 dBm (1.8 W)
IIB 35.4 dBm (3.5 W) 3 dBd / 5.15 dBi 30.3 dBm (1.0 W)
IIC 33.0 dBm (2.0 W) 3 dBd / 5.15 dBi 27.8 dBm (0.6 W)

*See the ATEX Product Manual (safety and mounting instructions) and related EU DECLARATION OF CONFORMITY ATEX Directive 2014/34/EU.

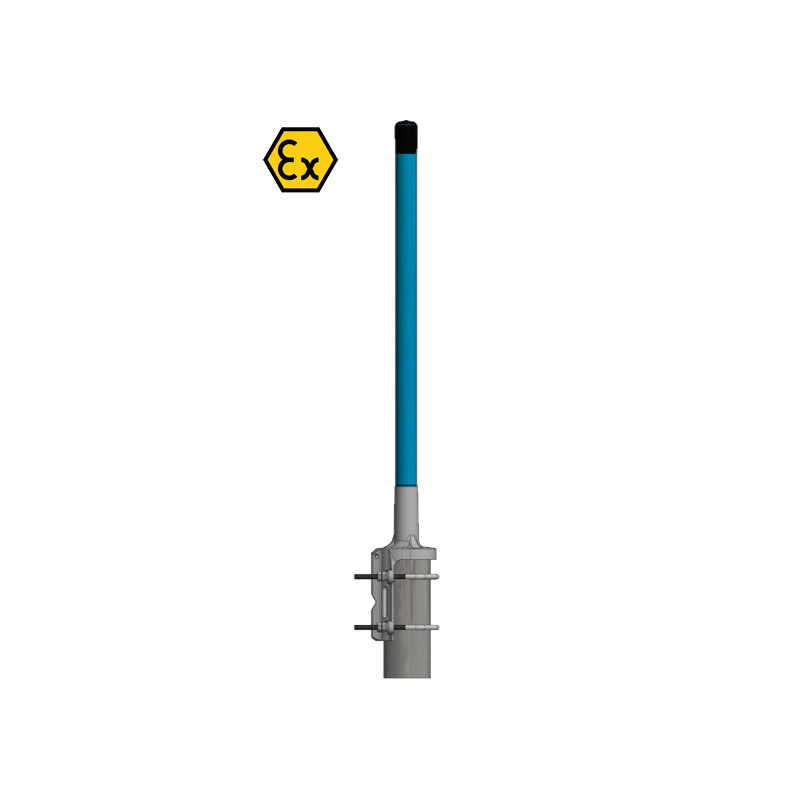

Mounting Details

LW-SS-Ex-beslag mont iso GB 280x

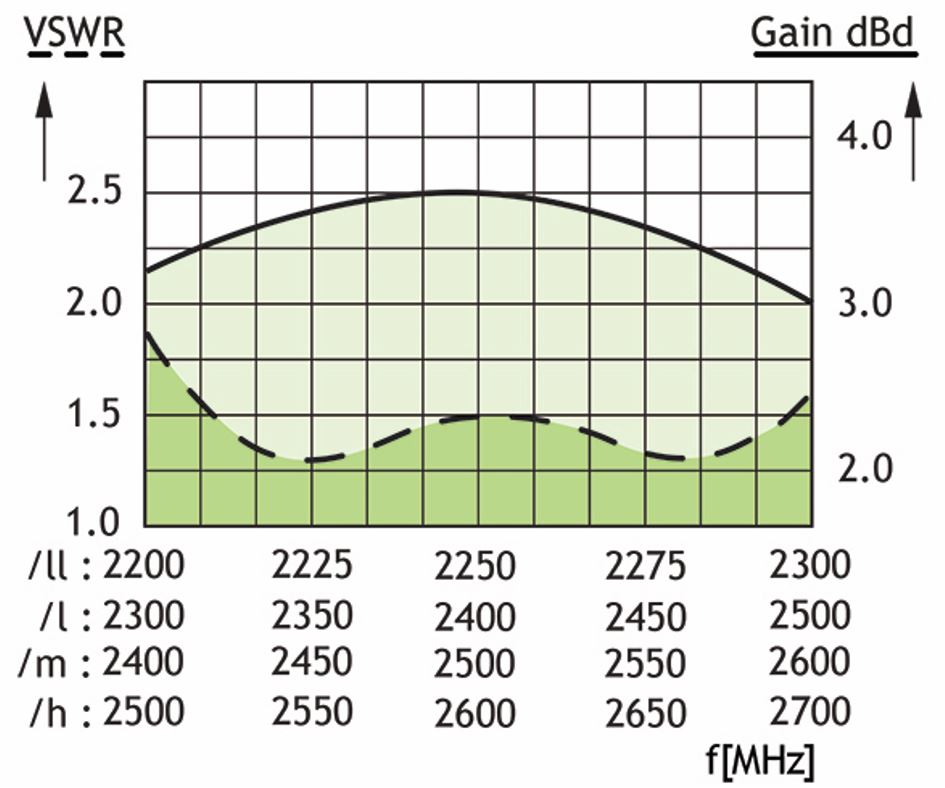

Typical Gain and VSWR Curve
