CXL 450-1LW-SS-Ex

ATEX certified, 0 dBd, Omnidirectional Base Station for the 450 MHz Band in Hazardous areas

Find Out More
View Variations
Data Sheet
CE Certification

Other Files

CXL 450-1LW-SS-Ex

Quickly identify the correct ordering code.

CXL 450-1LW-SS-Ex
Electrical
Model CXL 450-1LW-SS-Ex
Frequency 50 MHz wide frequency segments within 380 – 510 MHz. See ordering designations
Antenna Type Coaxial dipole, broad-banded
Special spec. info Max. RF Input Power due to max. EIRP in ATEX Environment *:

Group IIA : 35.6 dBm (3.6 W)
Group IIB : 33.3 dBm (2.1 W)
Group IIC : 30.8 dBm (1.2 W)
3 dB Beamwidth, H-Plane Omnidirectional
Polarisation Vertical
Pattern Type Omnidirectional
3 dB Beamwidth, E-Plane 80 °
Impedance 50 Ω
Gain 0 dBd (2.2 dBi)
VSWR < 1.5:1
Bandwidth 50 MHz
Antistatic Protection All metal parts DC-grounded (Connector shows a DC-short)
HCM Code(s) HCM000ND00, 040DE00
Environmental
Operating temperature range -30 °C to +60 °C
Survival Wind Speed 200 km/h
Ingress Protection IP66
Mechanical
Connector Torque N(f) : 0.7 – 1.1 Nm
Wind Area 0.029 sq. m / 0.31 sq. ft
Materials Radome : Polyurethane-coated glass fibre
Mounting bracket : Stainless acid-proof steel (AiSi 316L)
U-bolt and fittings : Stainless steel (AiSi 316)
Installation Torque 3 Nm
Colour Blue (RAL 5015)
Historic Brand Amphenol Procom
Height Approx. 1050 mm / 41.34 in.
Wind Load 33.6 N (160 km/h)
Diameter 25.5 mm / 1.00 in.
Weight Approx. 1.45 kg / 3.20 lb.
Mounting On 16 to 54 mm / 0.63 to 2.13 in. dia. mast tube
ATEX Marking II 3G Ex nA IIC T6

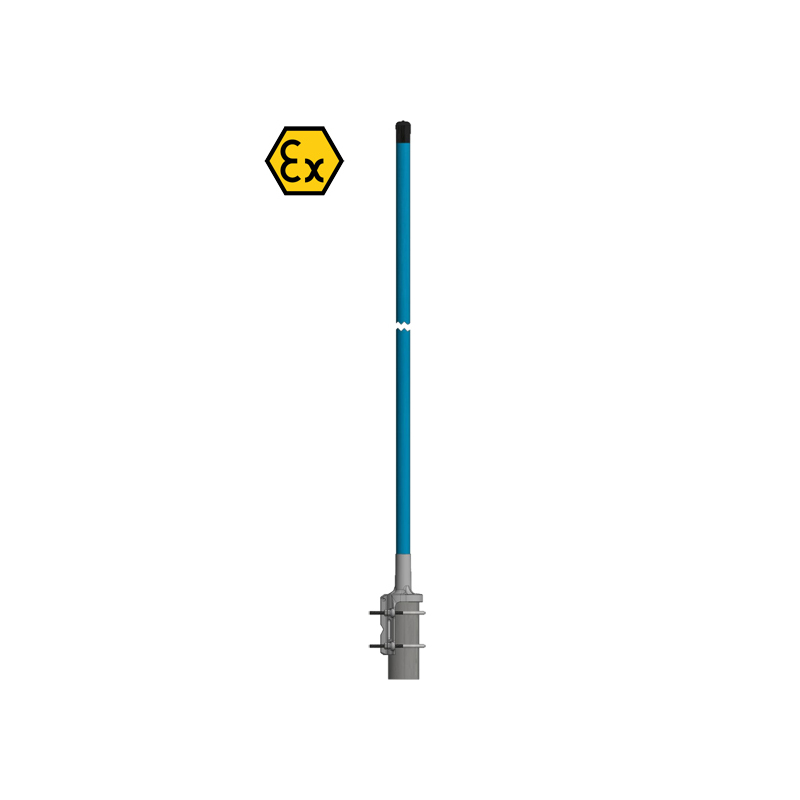

  • CXL 450-1LW-SS-Ex is a 0 dBd, vertically polarized, omnidirectional base station antenna which covers the 380 – 510 MHz band in three models.
  • The antenna is specified as an ATEX antenna for use in zone 2 in potentially explosive areas.
  • Before installing the antenna, please read the ATEX Product Manual carefully.
  • The antenna is suitable for use in gas groups IIA, IIB and IIC in zone 2.
  • It’s only necessary to install an ATEX grounding Kit on the LW-SS-Ex bracket, when the point of installation has a different electrical potential than the system.
  • The carefully designed, broadbanded ½ λ-dipole radiating element is made of brass tube and sealed in a high-quality cylindrical glass fibre tube with low wind-load.
  • The accompanying U-bolts and fittings are made of stainless steel.
  • The antenna element is sealed in a high-quality glass fibre tube.
  • All metal parts in the antenna are DC-grounded. Consequently, the antenna shows a DC-short across the coaxial cable.

No content found

This product doesn’t have any diagrams yet.

Model Product No. Frequency Add To Quote

CXL 450-1LW-SS-Ex/l

 115000010 380 – 430 MHz

CXL 450-1LW-SS-Ex/h

 115000011 420 – 470 MHz

Login required

You need to be logged in into your account to view downloadable documents.

Calculation of max. Antenna input power in different ATEX groups
ATEX GROUPMAX. EIRP POWERANTENNA GAINMAX INPUT POWER
IIA 37.7 dBm (6.0 W) 0 dBd / 2.15 dBi 35.6 dBm (3.6 W)
IIB 35.4 dBm (3.5 W) 0 dBd / 2.15 dBi 33.3 dBm (2.1 W)
IIC 33.0 dBm (2.0 W) 0 dBd / 2.15 dBi 30.8 dBm (1.2 W)

*See the ATEX Product Manual (safety and mounting instructions) and related EU DECLARATION OF CONFORMITY ATEX Directive 2014/34/EU.
