GP 160 B

Broad-banded, Antistatic Ground-Plane Antenna for the 160 MHz Band

Find Out More
Data Sheet
CE Certification

Other Files

GP 160 B
Electrical
Model GP 160 B
Frequency Covering : 145 – 175 MHz
Antenna Type Ground-plane, broad-banded
Max. Input Power 1000 W
3 dB Beamwidth, H-Plane Omnidirectional
Polarisation Vertical
Pattern Type Omnidirectional
Impedance 50 Ω
Gain 0 dBd (2.2 dBi)
VSWR < 1.6:1
Bandwidth 30 MHz
Antistatic Protection All metal parts DC-grounded (Connector shows a DC-short)
Environmental
Operating temperature range -35 °C to +70 °C
Mechanical
Wind Area 0.046 sq. m / 0.50 sq. ft
Connection(s) 0.5 m tail of RG 213 terminated with an N-female connector
Materials Black anodized, corrosion-resistant aluminium
Colour Black
Historic Brand Amphenol Procom
Height Approx. 720 mm / 28.35 in.
Wind Load 58 N (160 km/h)
Weight Approx. 1.5 kg / 3.31 lb.
Mounting On 38 mm / 1.50 in. dia. mast tube

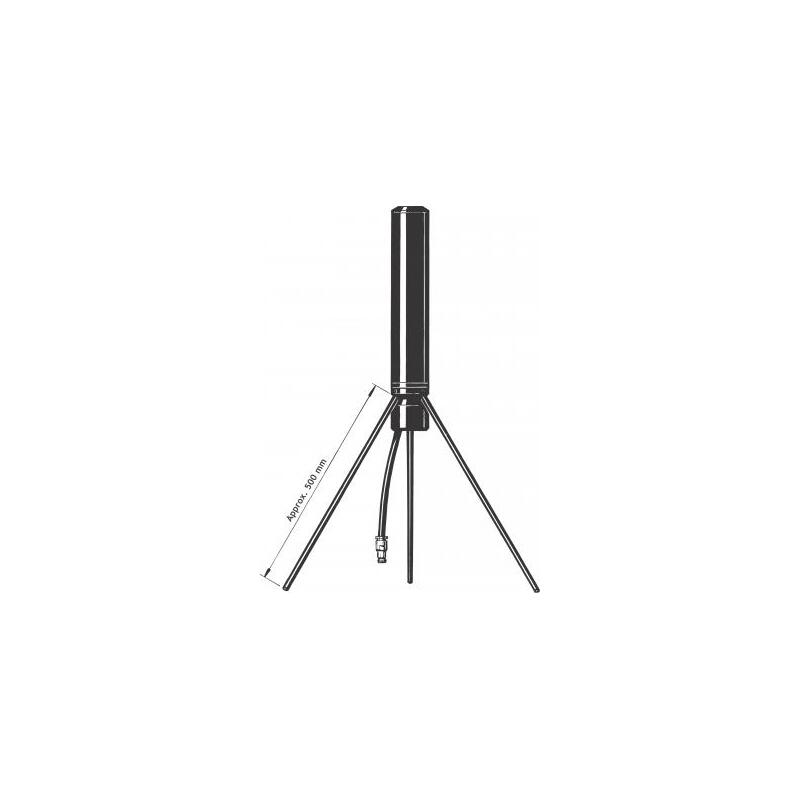

  • GP 160 B is a broad-banded, 0 dBd, ground-plane antenna of the triple-leg type.
  • The antenna is fully universal as it covers the complete band: 145 – 175 MHz.
  • Atmospherical discharges are immediately led to ground, as all metal parts are DC-grounded.(Consequently, the antenna shows a DC-short across the coaxial cable).
  • GP 160 B is made from corrosion-resistant aluminium, which together with a special anodizing process gives this antenna a very long lifetime.
  • LW-SS-1″ mounting bracket and GP Adaptor is available as accessories.

TYPICAL GAIN AND SWR CURVES
