GP 160

¼ λ Glass fibre Ground-Plane Antenna for the 160 MHz Band

Find Out More
View Variations
Data Sheet
CE Certification

Other Files

GP 160

Quickly identify the correct ordering code.

GP 160
Electrical
Model GP 160
Frequency Tunable by cutting within: 145 – 175 MHz
(Also applicable: 175 – 400 MHz)
Antenna Type Ground-plane
Max. Input Power 1 kW
3 dB Beamwidth, H-Plane Omnidirectional
Polarisation Vertical
Pattern Type Omnidirectional
Impedance 50 Ω
Gain 0 dBd (2.2 dBi)
VSWR ≤ 1.2 @ f. res.
Bandwidth 12 MHz @ 160 MHz (VSWR < 2.0)
30 MHz @ 400 MHz (VSWR < 2.0)
Environmental
Operating temperature range -30 °C to +70 °C
Mechanical
Wind Area 0.0184 sq. m / 0.20 sq. ft
Connection(s) UHF(f) (fitting PL 259)
Materials Shroud : Polyurethane-coated glass fibre
Metal parts: Bright chromed brass
Colour White (RAL 9003) / Bright chrome
Historic Brand Amphenol Procom
Height Approx. 870 mm / 34.25 in.
Wind Load 23 N (160 km/h)
Dia. At Top End 5 mm / 0.20 in.
Weight Approx. 1.0 kg / 2.20 lb.
Dia. At Bottom End 8 mm / 0.31 in.
Mounting 38 mm dia. mast tube (42 mm dia. as option, see note)
  • GP 160 is a glass fibre ground-plane antenna of the triple-leg type.
  • The antenna is tunable (by cutting) within its main frequency band: 145 – 175 MHz, but is further applicable up to 400 MHz.
  • The cutting diagrams below indicate the length of the radiator and the radials corresponding to a specific frequency. It is recommended to use the curves as a guide and fine-tune using an VSWR-meter.
  • The antenna comprises a GP-head made of chromed brass, one glassfiber radiator and three glass fibre radials.
  • GP 160 is made of first-class materials and will endure “wear and tear” for years – no maintenance required.
  • LW-SS-1″ mounting bracket and GP Adaptor is available as accessories.

No content found

This product doesn’t have any diagrams yet.

Model Product No. Model Add To Quote

GP 160

 100000104 GP 160

GP 160/42 mm

 100000105 GP 160/42 mm

Login required

You need to be logged in into your account to view downloadable documents.

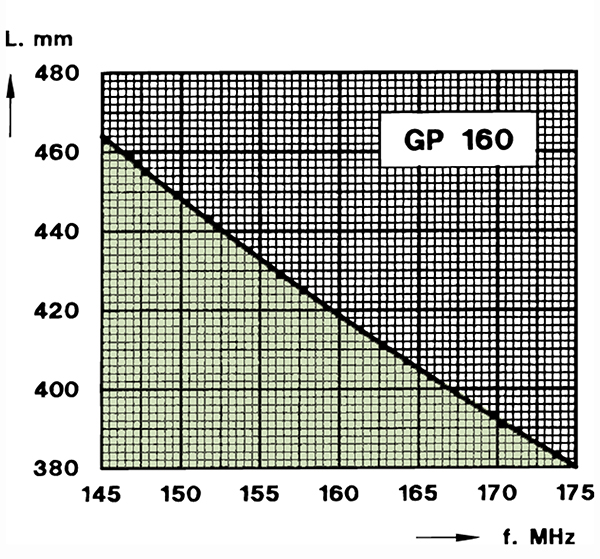

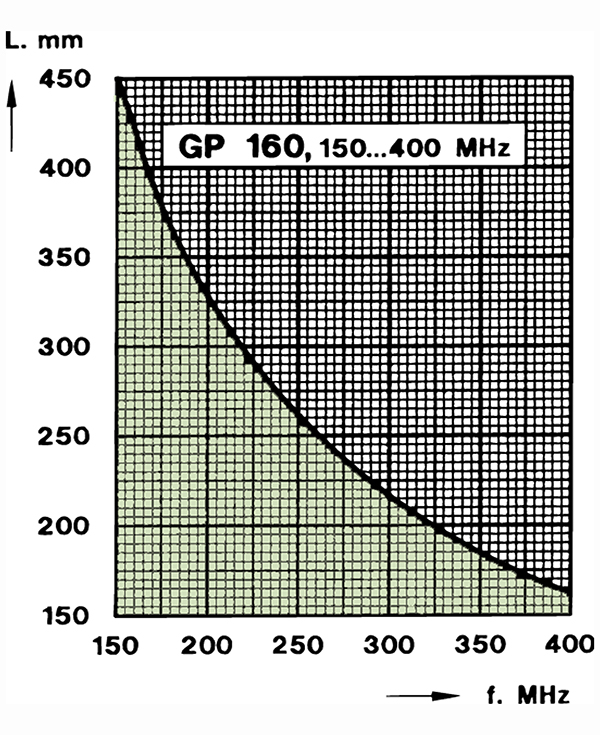

Cutting Diagrams

Please Note

The GP 160 can be delivered with a GP-head for mounting on 42 mm dia. mast tube (standard is 38 mm) when ordering as option GP 160/42 mm.
The radiator is measured from its free end to the bottom of the black insulator, while the radials are measured from their free ends to where they meet the GP-head.
