GP 80

¼ λ Glass fibre Ground-Plane Antenna for the 80 MHz Band

Other Files

Electrical
Model	GP 80
Frequency	Tunable by cutting within : 66 – 88 MHz (Also applicable : 88 – 150 MHz)
Antenna Type	Ground-plane
Max. Input Power	1000 W
Polarisation	Vertical
Pattern Type	Omnidirectional
Impedance	50 Ω
Gain	0 dBd (2.2 dBi)
VSWR	≤ 1.2 @ f. res.
Bandwidth	8 MHz (VSWR < 2.0)

Mechanical
Wind Area	0.043 sq. m / 0.46 sq. ft
Connection(s)	UHF(f) (fitting PL 259)
Materials	Elements : Glass fibre Metal parts : Bright chromed brass
Colour	White (RAL 9003) / Bright chrome
Historic Brand	Amphenol Procom
Height	Approx. 1300 mm / 51.18 in.
Wind Load	54 N @ 160 km/h / 99.42 mph.
Weight	Approx. 1.3 kg / 2.87 lb.
Mounting	38 mm dia. mast tube (42 mm dia. as option, see note)

The radiator is measured from its free end to the bottom of the black insulator, while the radials are measured from their free ends to where they meet the GP-head.
GP 80 is a glass fibre ground-plane antenna of the triple-leg type.
The antenna is tunable (by cutting) within its main frequency band: 66…88 MHz but is further applicable up to 150 MHz.

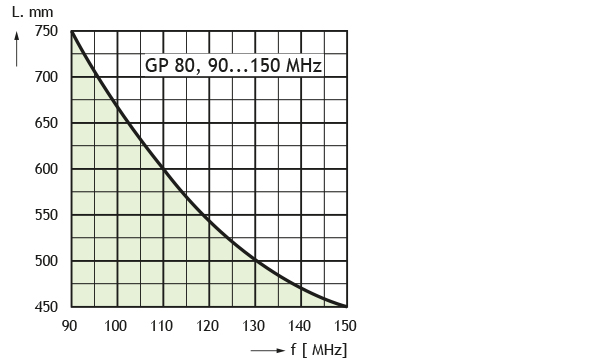

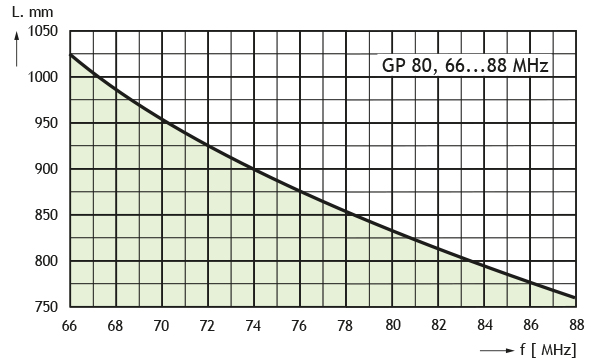

The cutting diagrams on the diagrams tab indicate the length of the radiator and the radials corresponding to a specific frequency. It is recommended to use the curves as a guide and fine-tune using an VSWR-meter.
The antenna comprises a brass GP-head, one glassfiber radiator and three glass fibre radials.
GP 80 is made of first-class materials and will endure “wear and tear” for years – no maintenance required.
LW-SS-1″ mounting bracket and GP Adapor is available as accessories.

This product doesn’t have any diagrams yet.

Model	Product No.	Model	Add To Quote
GP 80	100000061	GP 80
GP 80/42 mm	100000062	GP 80/42 mm

You need to be logged in into your account to view downloadable documents.

The GP 80 can be delivered with a GP-head for mounting on 42 mm dia. mast tube (standard is 38 mm) when ordering as option GP 80/42 mm.
