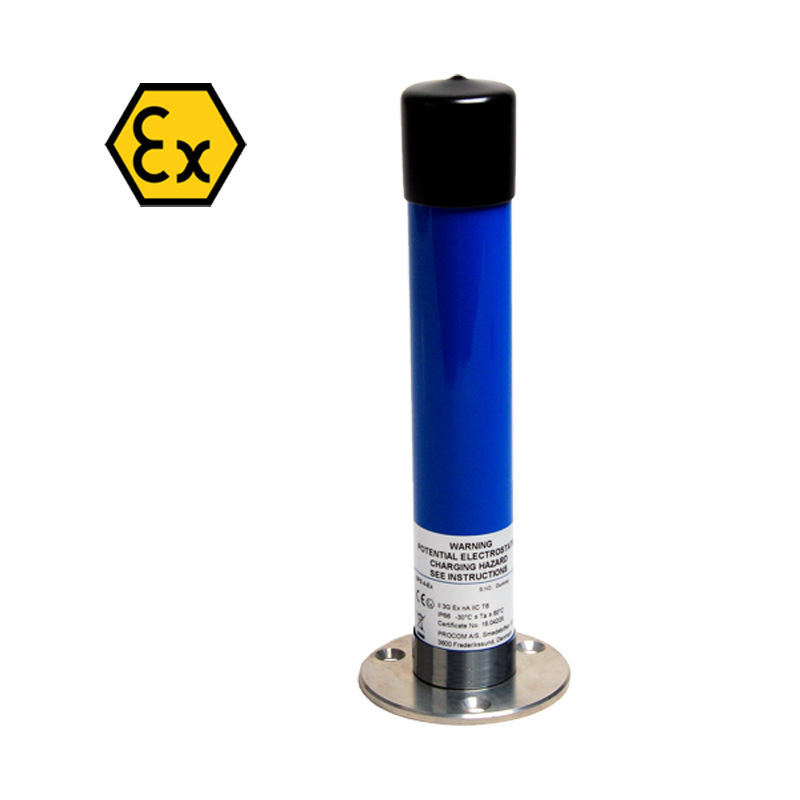

GPS 4-Ex

ATEX Certified GPS, Galileo, Glonass and BeiDou antenna for Mast Mounting in Hazardous areas

Find Out More
Data Sheet
CE Certification

Other Files

GPS 4-Ex
Electrical
Model GPS 4-Ex
Frequency 1570 – 1650 MHz
Antenna Type Quadrifilar helix antenna
Max. Input Power Receiver only
Polarisation Circular
Pattern Type Hemispherical
Impedance 50 Ω
Gain 2 dBic (0 dBd)
VSWR < 2.0:1
Bandwidth 75 MHz
Antistatic Protection All metal parts DC-grounded
(Connector shows a DC-short)
Environmental
Operating temperature range -30 °C to +60 °C
Survival Wind Speed 200 km/h / 124.3 mph.
Ingress Protection IP66
Mechanical
Wind Area 0.0072 sq. m / 0.08 sq. ft
Connection(s) N(f)
Materials Shroud : Polyrethane – Coated glass fiber
Mounting bracket : Stainless steel
Installation Torque Mounting bracket : 6.5 – 7 Nm
Colour Blue (RAL 5015)
Historic Brand Procom
Height Approx. 250 mm / 9.84 in.
Wind Load Approx. 9.6 N @ 150 km/h / 93.2 mph.
Diameter 40 mm / 1.57 in.
Weight Approx. 0.45 kg / 0.99 lb.
Mounting Bracket SM-MAS
ATEX Marking II 3G Ex nA IIC T6
  • Passive quadrifilar helix antenna for fixed installation.
  • Covering GPS, Galileo, Glonass and BeiDou.
  • The antenna is specified as ATEX antenna for use in zone 2 in potentially explosive areas.
  • The antenna is to be used as a receiver only.
  • Before installing the antenna, read the ATEX Product Manual carefully.
  • The antenna is suitable for use in gas groups IIA, IIB and IIC in zone 2.
  • Right-hand circularly polarized antenna (RHCP).
  • The circularly polarized antenna minimizes the fading effect often encountered in environments with reflecting obstacles.
  • Mounting bracket available to make the perfect installation for your specific needs.
  • All metal parts in the antenna are DC-grounded. Consequently, the antenna shows a DC-short across the coaxial cable.
  • Maximum recommended cable loss between antenna and receiver is 9 dB (e.g. 20 m RG 58 A/U-XLL) for receivers with acquisition sensitivity of < - 142 dBm. Higher cable loss can be tolerated for receivers with lower acquisition sensitivity.

MOUNTING DETAILS

ASSEMBLY DRAWING

Model Product No. Add To Quote
ATEX Certified GPS, Galileo, Glonass and BeiDou antenna for Mast Mounting in Hazardous areas 115000029

Login required

You need to be logged in into your account to view downloadable documents.

Mounting Details

All dimensions are given in mm [in.]

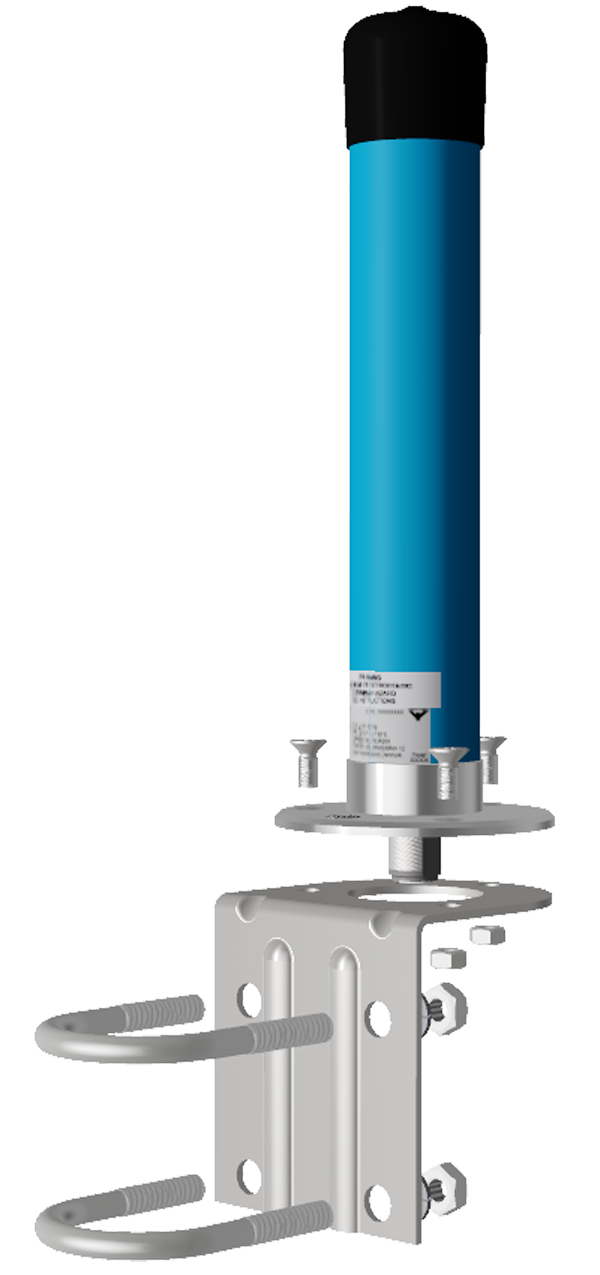

Assembly Drawing

GPS4 -Ex-beslag

Note

*See the ATEX Product Manual (safety and mounting instructions) and related EU DECLARATION OF CONFORMITY ATEX Directive 2014/34/EU.
