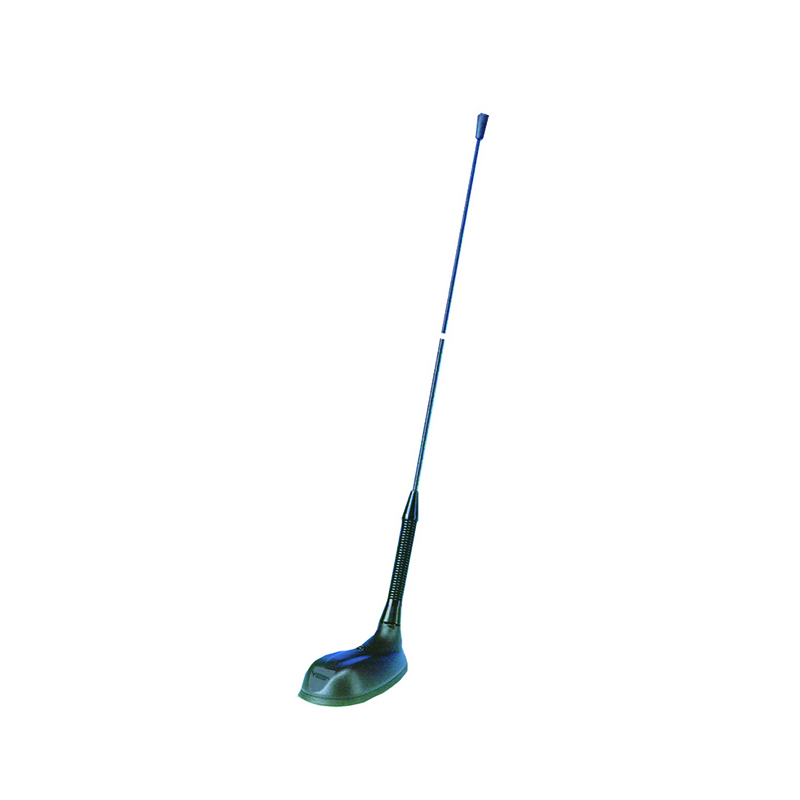

GPS Antenna with a ¼ λ Whip with Shock Spring for the 160 MHz, EGSM and FM Bands
Find Out MoreOther Files
| Electrical | |
| Model | GPS-C 2R/GSM/FM/FQ |
|---|---|
| Frequency | Tunable by cutting within : 144 – 175 MHz also receives. EGSM : (790 – 960 MHz) and FM-radio : (88 – 108 MHz) |
| Antenna Type | Mobile antenna |
| Max. Input Power | 25 W |
| Polarisation | Vertical |
| Impedance | 50 Ω |
| Gain (EIA RS-329-1) | Approx. 0 dB for the 160 MHz band |
| Mechanical | |
| Materials | Whip : Black-chromed, conical stainless steel Black-chromed brass Mount : Weather- and shockproof plastics Black-chromed brass |
|---|---|
| Colour | Black |
| Historic Brand | Amphenol Procom |
| Antenna Mount Type | Hole Mount |
| Height | Approx. 450 mm / 17.72 in. |
| Weight | Approx. 0.06 kg / 0.13 lb. |
| Mounting | On the GPS-Combi mount |
This product doesn’t have any diagrams yet.
| Model | Product No. | Add To Quote |
|---|---|---|
| GPS Antenna with a ¼ λ Whip with Shock Spring for the 160 MHz, EGSM and FM Bands | 132000063 |
You need to be logged in into your account to view downloadable documents.
Can also be supplied factory-cut for the required frequency (between 144 – 175 MHz).

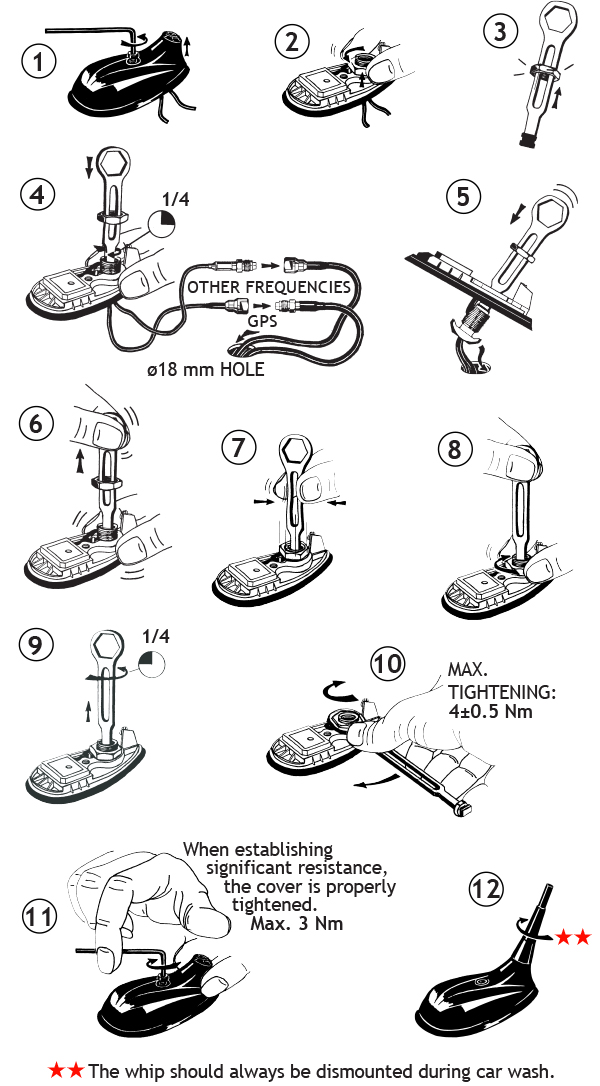

Do not use sealer on rubber gasket or other places.

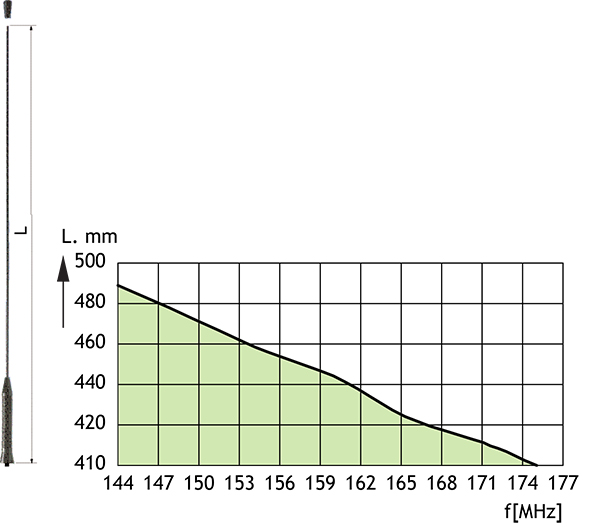

The antenna should always be tuned using an VSWR-meter. The cutting diagram below serves as a guide for this procedure.
Hereby Amphenol Procom declare that the product type GPS-C 2R/GSM/FM/FQ is in compliance with EU Directive 2014/53/EU and
the UK Radio Equipment Regulations 2017 (S.I. 2017 No. 1206).
The full text of the Declaration of Conformity is available at:
https://s3.us-west-2.amazonaws.com/catsy.1080/Declaration-of-Conformity-GPS-C-2.pdf

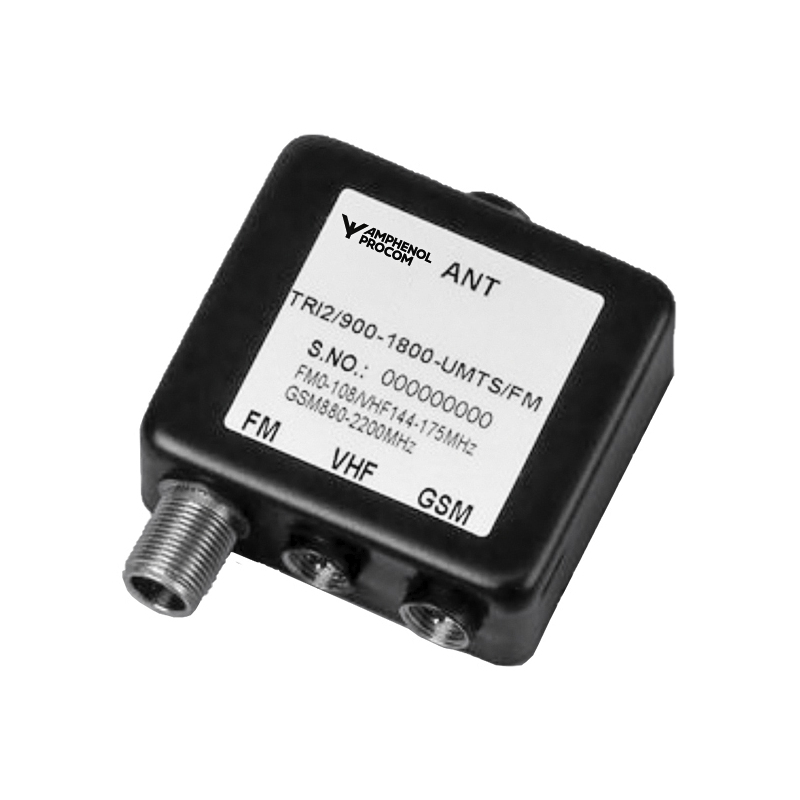

Triplexer for Two Mobile Telephones (144-175 MHz (COM1) / 880-2300 MHz (COM2)) and Car Radio (0-108)
