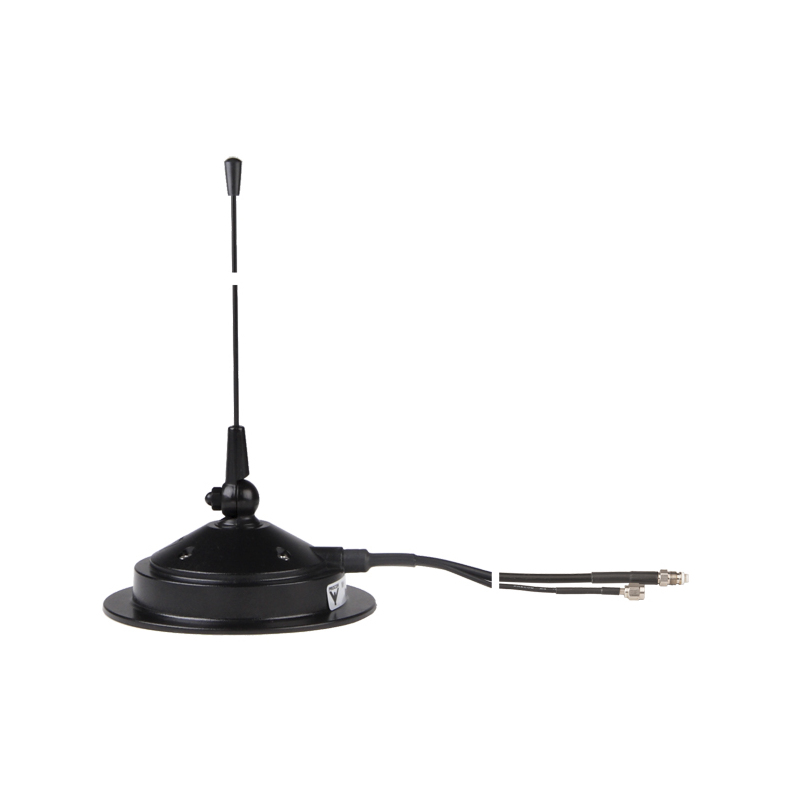

GPS Antenna with a ¼ λ Mobile Antenna for the 160-174 MHz Band (VHF)
Find Out MoreOther Files
| Electrical | |
| Model | MH 1-MG/GPS/160-174 |
|---|---|
| Frequency | 160 – 174 MHz |
| Antenna Type | ¼ λ mobile whip antenna |
| Max. Input Power | 25 W |
| Polarisation | Vertical |
| Impedance | 50 Ω |
| VSWR | < 1.5:1 @ f.res |
| Bandwidth | ≥ 14 MHz @ VSWR ≤ 1.6 |
| Gain (EIA RS-329-1) | 0 dB |
| Environmental | |
| Operating temperature range | -35 °C to +75 °C |
|---|---|
| Mechanical | |
| Compliance | ECE R118.02 approved cable |
|---|---|
| Connection(s) | FME(f) with 5 m RG 58 cable for VHF (other connectors like BNC(m) or TNC(m) can be made upon request) SMA(m) with 5 m RG 174 cable for GPS |
| Materials | Whip : Black-chromed stainless steel Mount : Stainless steel Black-chromed brass Weather- and shockproof plastics |
| Colour | Black |
| Historic Brand | Amphenol Procom |
| Antenna Mount Type | Magnetic Mount |
| Dimensions | Whip : Approx. 390 mm / 15.35 in. Mount : Total height : Approx. 63 mm / 2.52 in. Diameter : 130 mm/ 5.12 in. |
| Whip Connection | Toggle joint (Hat screw with key) |
| Weight | Whip : Approx. 0.04 kg / 0.088 lb. Mount : Approx. 0.9 kg / 1.98 lb. |
| Mounting | Whip : On the MG Mount : Centre of vehicle roof for best omnidirectional coverage |
| Max. Car Speed | 170 km/h |
INSTALLATION
The magnetic mount should be mounted in the middle of the vehicle roof or rear locker for the best omnidirectional coverage.
| Model | Product No. | Add To Quote |
|---|---|---|
| GPS Antenna with a ¼ λ Mobile Antenna for the 160-174 MHz Band (VHF) | 132000152 |
