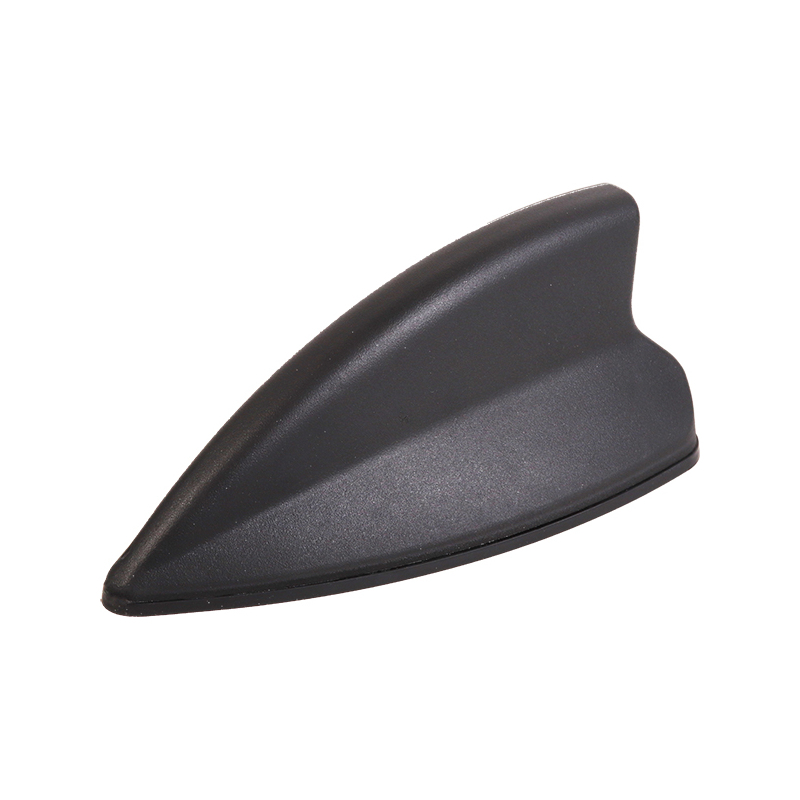

ProFin Plus

A 2×2 MiMo LTE and WIFI multi purpose shark fin antenna for GNSS, GPS, 2G/3G/4G/5G and dual WIFI 2.4/5.8 GHz

Find Out More
View Variations
Data Sheet
CE Certification

Other Files

ProFin Plus

Quickly identify the correct ordering code.

ProFin Plus
Electrical
Model ProFin Plus
Frequency 4G/5G 2×2 MiMo : 617 – 960 MHz, 1710 – 3800 MHz
WIFI 2×2 MiMo : 2400 – 2500 MHz, 5000 – 6000 MHz
Antenna Type Mobile Shark Fin Style Antenna
Max. Input Power 25 W for 4G/5G and WIFI
100 W for whip
Polarisation Vertical
Impedance 50 Ω
Gain (peak) 4G/5G 4dBi (617 – 960 MHz)
4G/5G 7dBi (1710 – 3800 MHz)
WiFi 6 dBi (2.4 GHz & 5.8 GHz)
Isolation (With 5m RG58)
>10 dB for 617 – 960MHz
>20 dB for 1710 – 3800MHz
>25 dB for WiFi
Correlation Coefficient < 0.4 for 617 - 700 MHz
< 0.25 for 700 - 960 MHz
< 0.1 for 1710 - 3800 MHz
VSWR < 2.2:1 for 617 -960 MHz
< 2.0:1 for 1710 - 3800 MHz
< 2.0:1 for 2400 - 2500 MHz
< 2.0:1 for 5000 - 6000 MHz
Environmental
Operating temperature range -50 °C to +75 °C
Water Resistance IP67
Mechanical
Compliance ECE R118.02 approved cable
Antenna Colour Black (RAL 9005)
Connection(s) SMA(m) (all antennas)
Materials Reinforced PA, Zamak 5
Installation Torque 4 ± 0.5 Nm
Historic Brand Amphenol Procom
Dimensions Approx. 83 x 173 mm / 3.3 x 6.8 in.
Height Approx. 66 mm/ 2.6 in.
Max. Roof Thickness 3 mm / 0.12 in.
Whip Connection M5
Weight Approx. 0.35 kg / 0.77 lb.
Mounting 18.5 mm / 0.8 in. dia. hole
Max roof curvature: 2.0 mm / 0.08 in.
(on 173 mm)
  • Can be configuered as 5in1, 6in1 and 7in1
  • In-built 2×2 MiMo LTE antenna (617-960 MHz and 1710-3800 MHz)
  • 2×2 MiMo Dual WiFi 2.4 and 5.8 GHz.
  • GNSS antenna for GPS L1, Glonass, Beidou and Galileo.
  • Model available with optional antenna for GPS L1.
  • Supports external whip.
  • No diplexer needed.
  • The ProFin Plus provides antennas for multiple technologies.
  • The ProFin Plus covers , 4G, GNSS, GPS L1, inc. 5G cellular bands, dual WIFI 2.4 and 5.8 GHz and an optional whip.
  • The ProFin Plus can support antenna whip in the range 66 – 520 MHz.
  • All ProFin Plus configurations are prepared for external whip.
  • Easily removable whip for car wash.
  • Full hemispherical coverage for the GNSS and GPS (optional).
  • Built-in high gain, low noise amplifier.
  • Preselector filter ensures high GNSS/GPS amplifier blocking level for out-of-band signals.
  • Right-Hand Circular Polarization.
  • 3 – 15 V DC for GNSS/GPS supply.
  • DC supply via GNSS or GPS RF-connector.
  • ECE R118.02 approved cable.

No content found

This product doesn’t have any diagrams yet.

Model Product No. Additional Information Add To Quote

ProFin Plus G1-L2-W2-S/S/S/S

 130002476 2 x 4G/5G, 2 x WiFi, GNSS,whip (not included)

ProFin Plus G2-L2-W2-S/S/S/S

 132000269 2 x 4G/5G, 2 x WiFi, GNSS, GPS (L1),whip (not included)

Login required

You need to be logged in into your account to view downloadable documents.

Gain table for IN-Built Antennas
TYPEFREQUENCY (MHz) PEAK GAIN (dBi)AVERAGE GAIN H-PLANE (dBi)AVERAGE GAIN H-PLANE (dBq) *
4G/5G

650
900
1800
2500
3600

4.0
5.0
6.0
7.0
7.0

 -1.0
-2.0
-2.0
-1.0
-1.0		 -1.0
-1.0
-1.0
0.0
0.0
WIFI 2400
5500		 6.0
7.0		 -3.0
-2.0		 -2.0
-3.0


* According to TIA-329.2-C

Ordering Designations – Whip Matrix
TYPEDESCRIPTION FM
88-108 MHz		VHF
144..240 MHz		UHF
380..470 MHz		UHF (Gain)
380..470 MHz
MP-SS-S/FM whip Stainless steel whip with shock spring. ♦
MP-SS-S/150 whip Stainless steel whip with shock spring. ♦ ♦
MP-SS-S/DAB whip Stainless steel whip with shock spring. ♦ ♦
MP-B/450/…whip Flexible whip
(0 dB acc. to TIA-329.2-C)		 ♦
MP-SS/450-4/…whip Stainless steel collinear whip
(4 dB acc. to TIA-329.2-C)		 ♦
MP-G-S/150/450/…/…whip Flexible whip with shock spring (factory adjusted) ♦ ♦
MP-G-S/450/FM/… whip Flexible whip with shock spring (factory adjusted) ♦ ♦

For more information we refer to the corresponding whip datasheets. The in-built antennas can be used without an external ground-plane, but with degraded electrical performance.

Nomenclature

Use the guide below to configure the ProFin Plus you would like to order.

Model NameNo. of GNSSNo. of LTE antennasNo. of WIFI antennasCable length(m)Connectors on GNSSConnectors on LTEConnectors on WIFIConnectors on external whip antenna
ProFin Plus G1
G2		 -L2 -W2 Blank (approx. 0.3 m / 1 ft cable length)
-P5 (5 m / 16.4 ft cable length)		 -S (SMA-M)

-FAKRA (on request)		 /S (SMA-M)

/FAKRA (on request)		 /S (SMA-M)
/RP-S (Reverse Polarity SMA-M)
/FAKRA (on request)		 /S (SMA-M)

/FAKRA (on request)
Naming Example
ProFin Plus G1 -L2 -W2 -P5 -S /S /RP-S /S


Example

ProFin Plus G1-L2-W2-P5-S/S/RP-S/S

FAKRA Connectors
Amphenol RF FAKRA male connector

Amphenol RF FAKRA connectors are available for this product in standard key code configurations. Please contact us with configuration details for availability.

FAKRA Connectors – RF Connectors | Amphenol RF

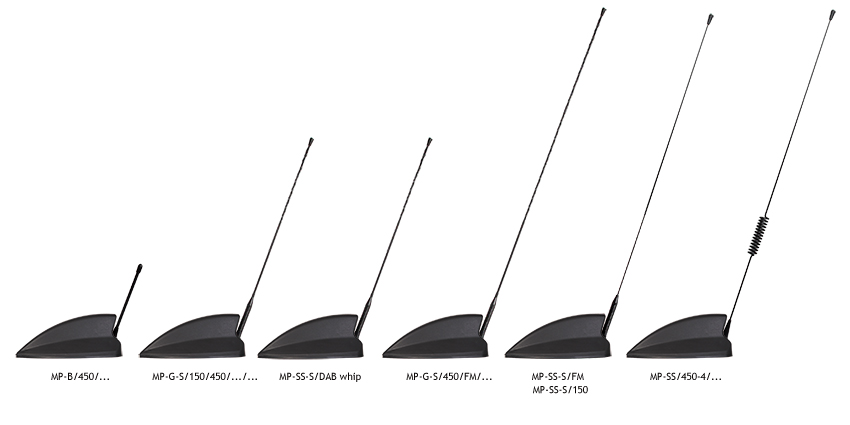

Whip Models

ProFin Plus pisk samling

Typical VSWR Curves

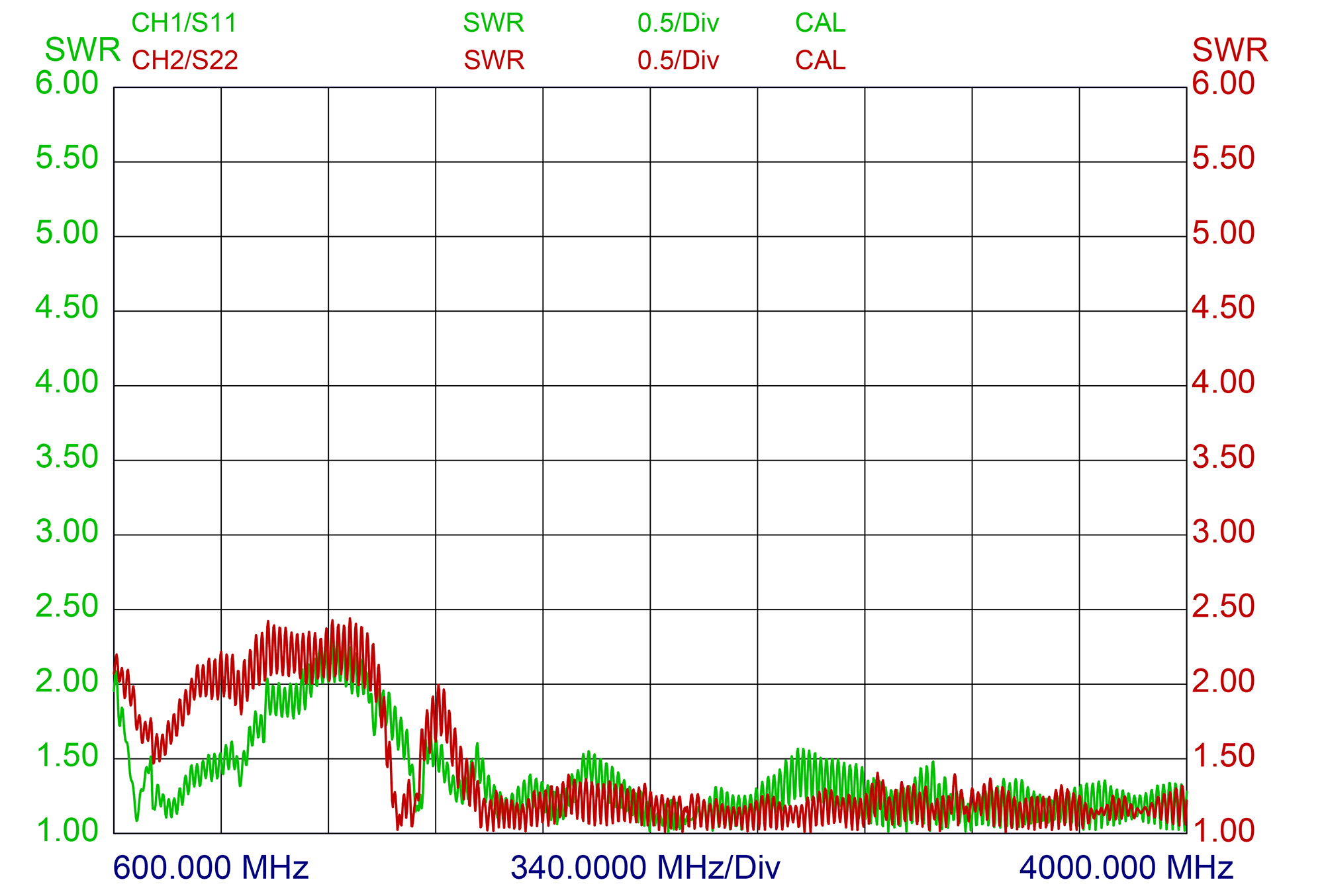

Typical VSWR Curves 2 x 4G/5G *

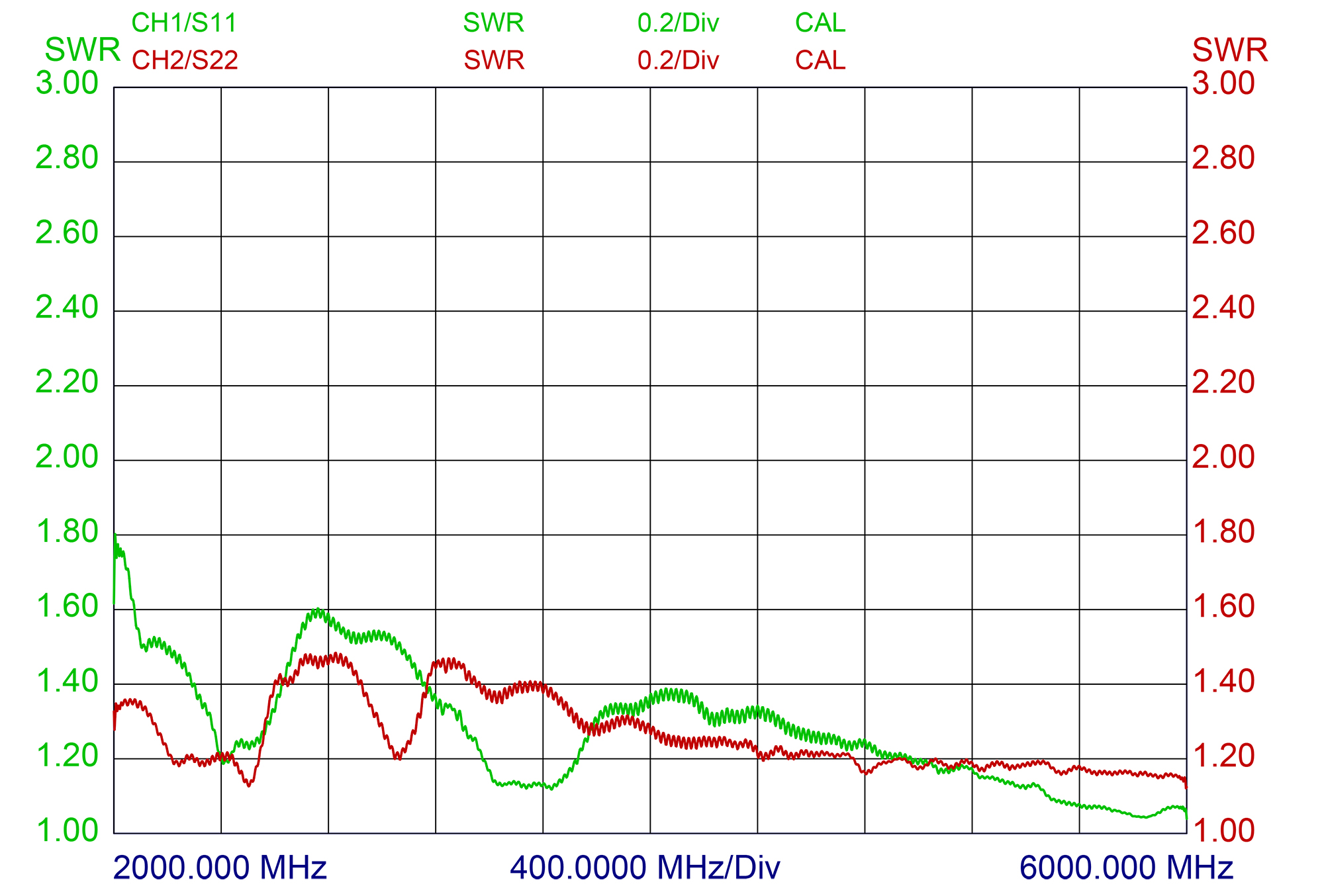

Typical VSWR Curves 2 x WIFI 2.4/5.8 GHz *
ProFin Plus 4G 5G SWR ProFin Plus WiFi SWR

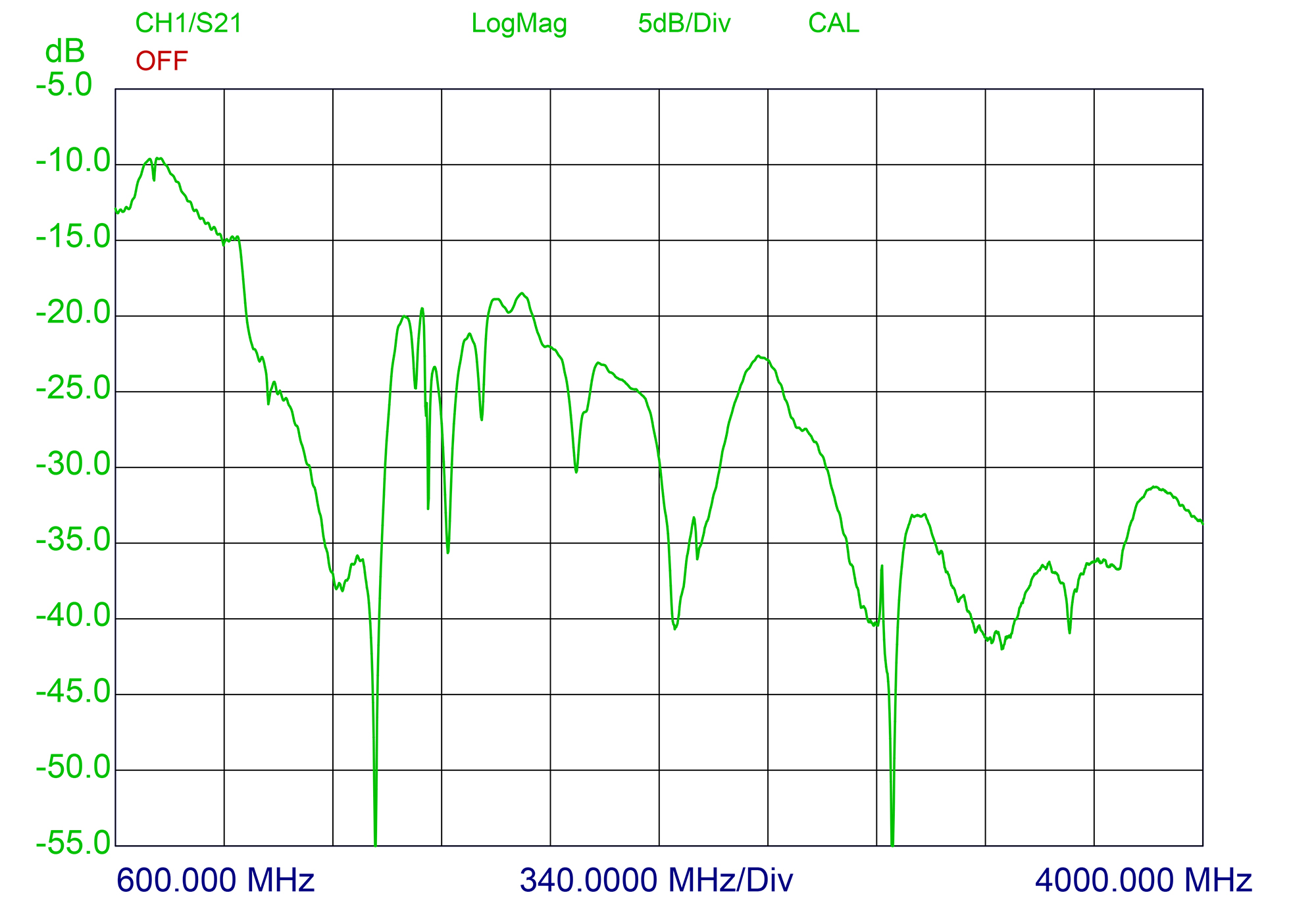

Typical Isolation Curves

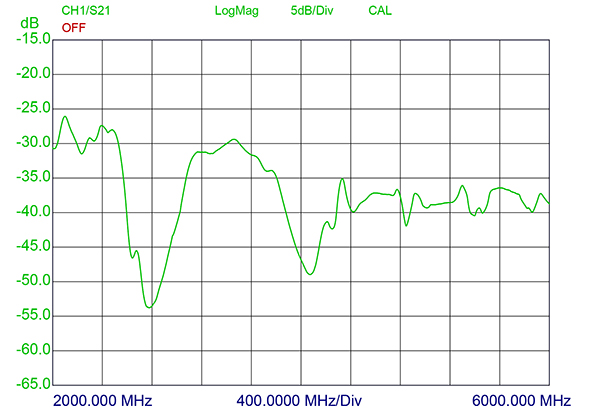

Isolation 2 x 4G/5G * Isolation 2 x WIFI 2.4/5.8 GHz*
ProFin Plus 4G 5G Isolation ProFinPlus WiFi Isolation

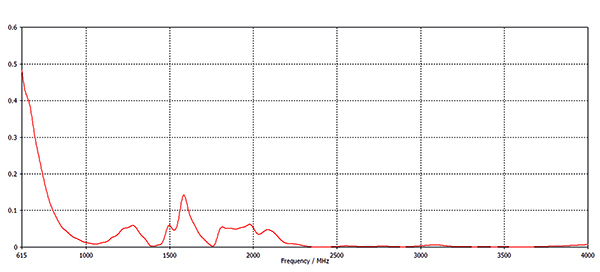

Correlation Coefficient 4G/5G**
Profin Plus Envelope Correlation Coefficient

* Measured with no whip and 5 m (197 in.) of RG 58 cable on a 500 x 500 mm (19.6 in. x 19.6 in.) ground plane.
** Simulated in free space with no whip, no ground plane and no additional cable.

Radiation Patterns

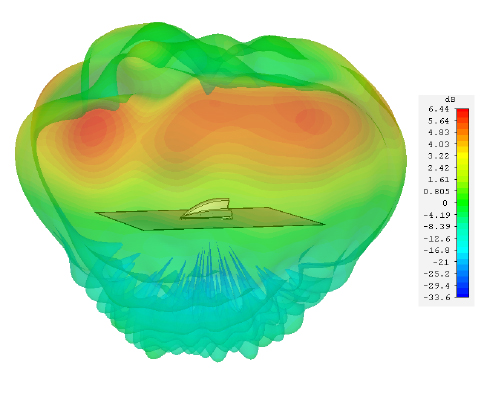

WIFI 2400 MHz, side view

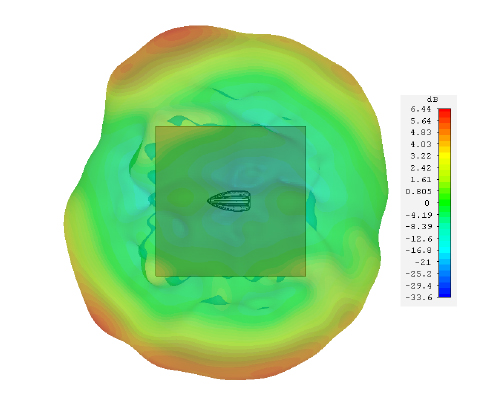

WIFI 2400 MHz, top view

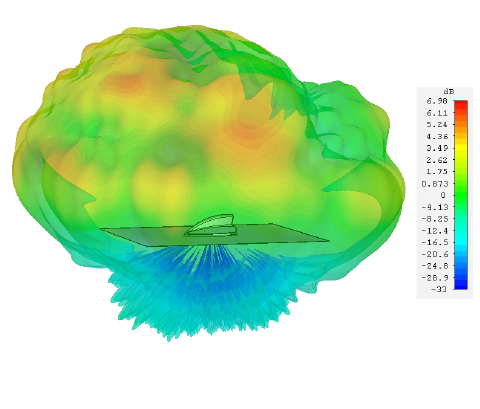

WIFI 5500 MHz, side view

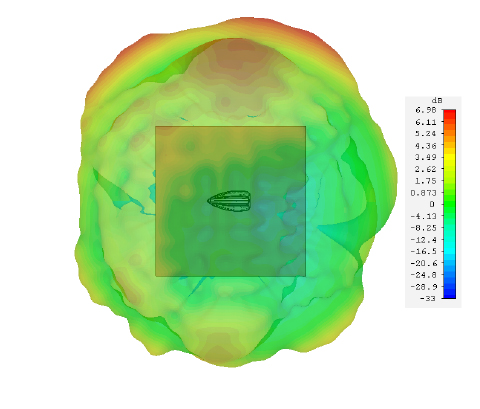

WIFI 5500 MHz, top view
ProFin Plus Wifi element 2400MHz side view
ProFin Plus Wifi element 2400MHz top view
ProFin Plus Wifi element 5500MHz side view
ProFin Plus Wifi element 5500MHz top view

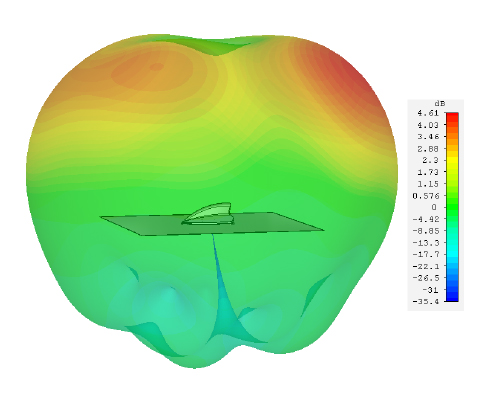

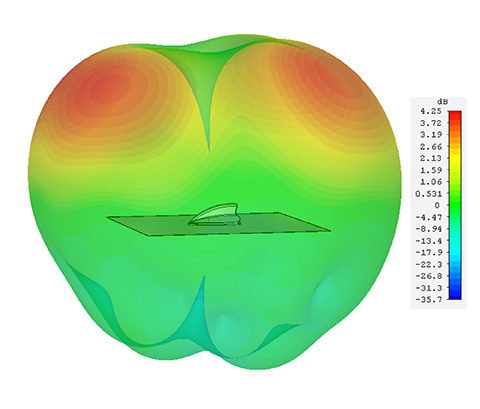

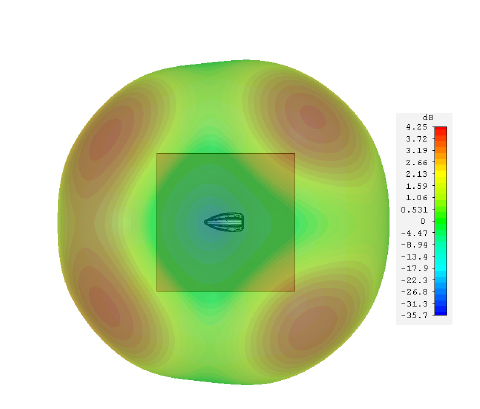

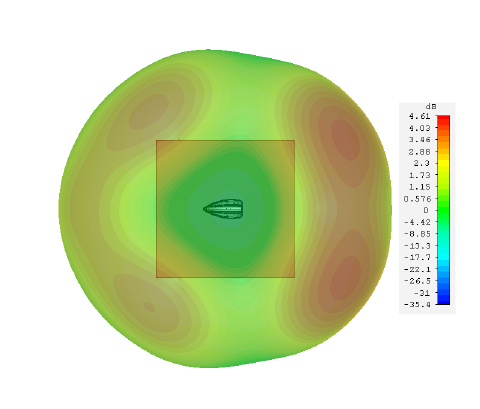

4G/5G 650 MHz, side view 4G/5G 650 MHz, top view 4G/5G 700 MHz, side view 4G/5G 700 MHz, top view
ProFin Plus 4G 5G element 650MHz side view
ProFin Plus 4G 5G element 650MHz top view
ProFin Plus 4G 5G element 700MHz side view
ProFin Plus 4G 5G element 700MHz top view

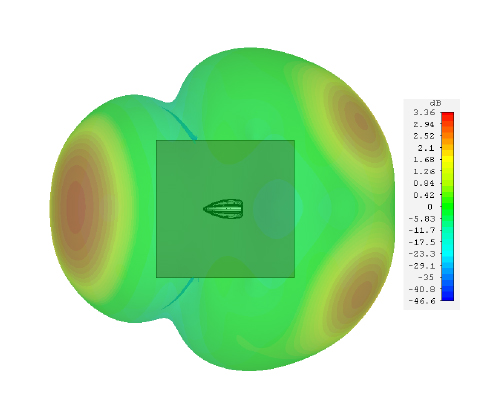

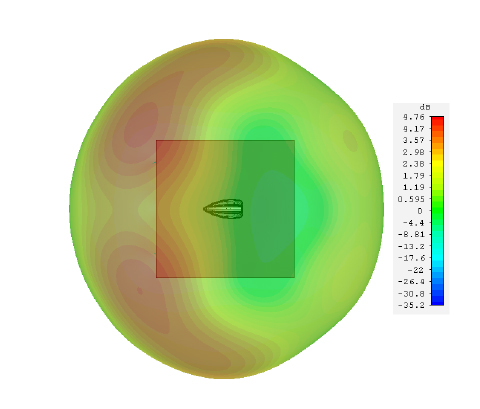

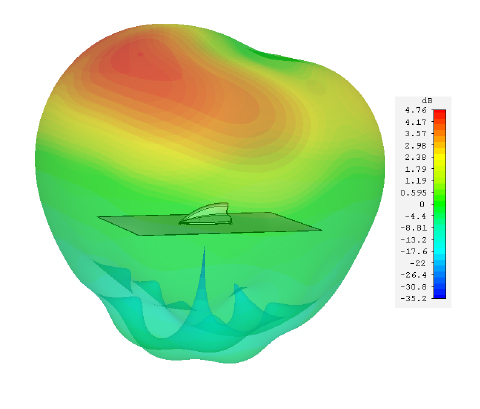

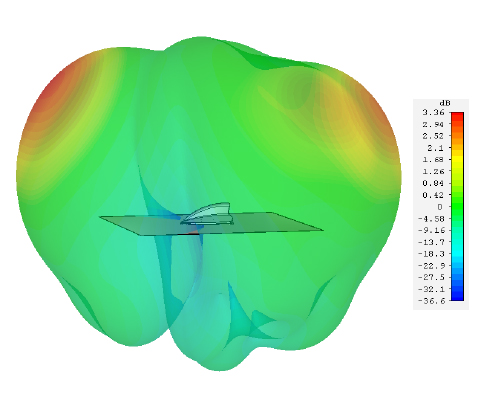

4G/5G 800 MHz, side view 4G/5G 800 MHz, top view 4G/5G 900 MHz, side view 4G/5G 900 MHz, top view
ProFin Plus 4G 5G element 800MHz side view ProFin Plus 4G 5G element 800MHz top view ProFin Plus 4G 5G element 900MHz side view ProFin Plus 4G 5G element 900MHz top view

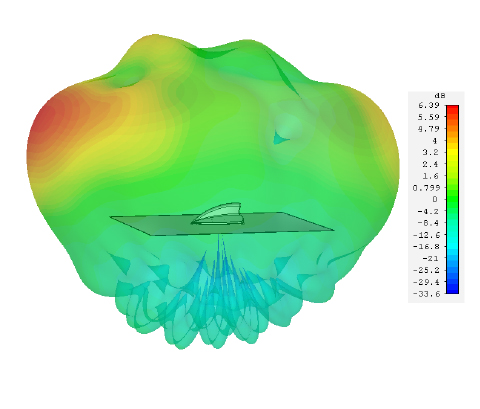

4G/5G 1800 MHz, side view

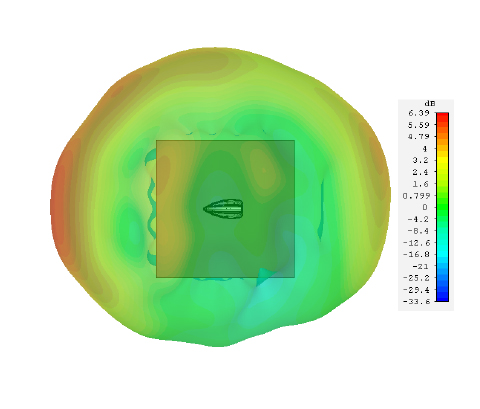

4G/5G 1800 MHz, top view

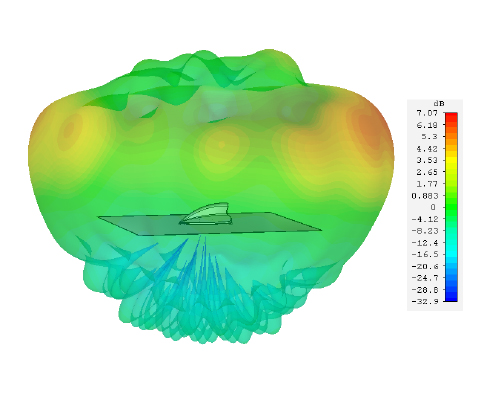

4G/5G 2100 MHz, side view

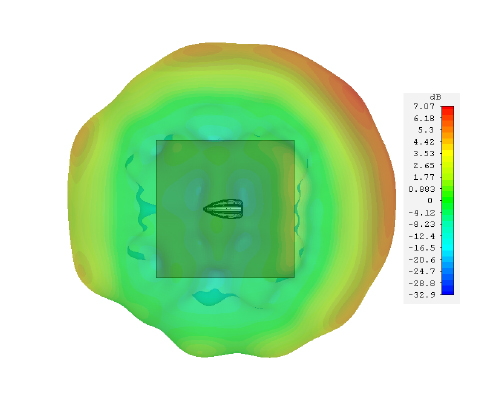

4G/5G 2100 MHz, top view
ProFin Plus 4G 5G element 1800MHz side view
ProFin Plus 4G 5G element 1800MHz top view
ProFin Plus 4G 5G element 2100MHz side view
ProFin Plus 4G 5G element 2100MHz top view

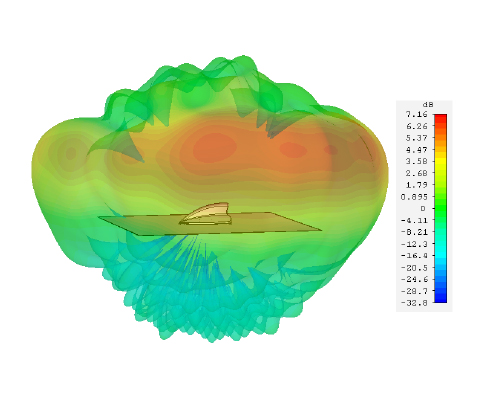

4G/5G 2600 MHz, side view

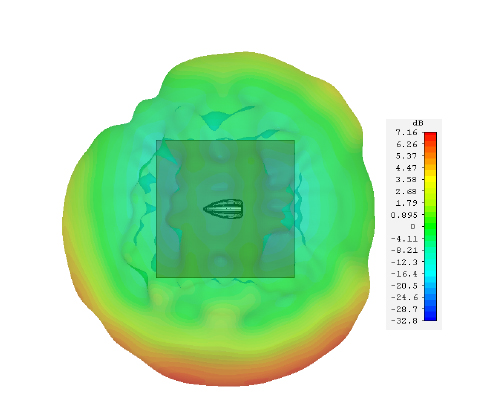

4G/5G 2600 MHz, top view

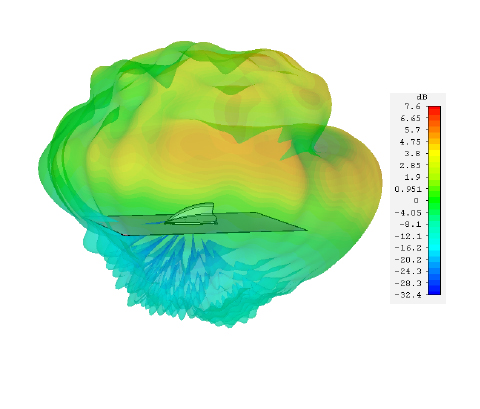

4G/5G 3600 MHz, side view

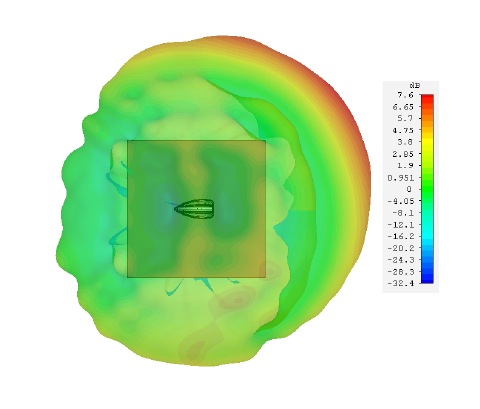

4G/5G 3600 MHz, top view
ProFin Plus 4G 5G element 2600MHz side view
ProFin Plus 4G 5G element 2600MHz top view
ProFin Plus 4G 5G element 3600MHz side view
ProFin Plus 4G 5G element 3600MHz top view
Accessories – Cables

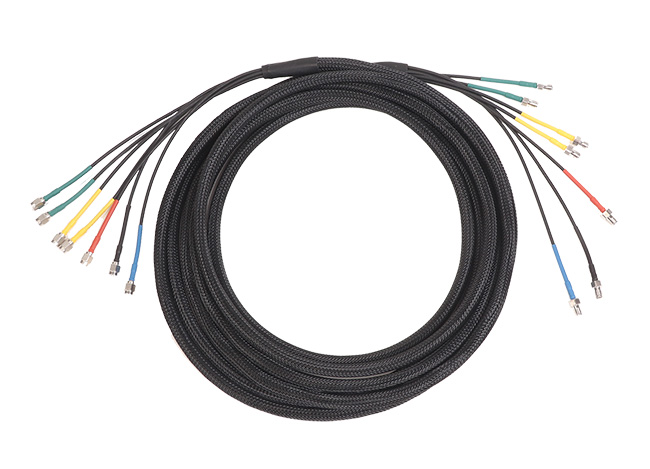

Profin Plus cable kit

5 m ProFin Plus Cable Kit.
7 pcs. RG 174 cables in one cable bundle (ø9 mm).
Provides ease of installation.

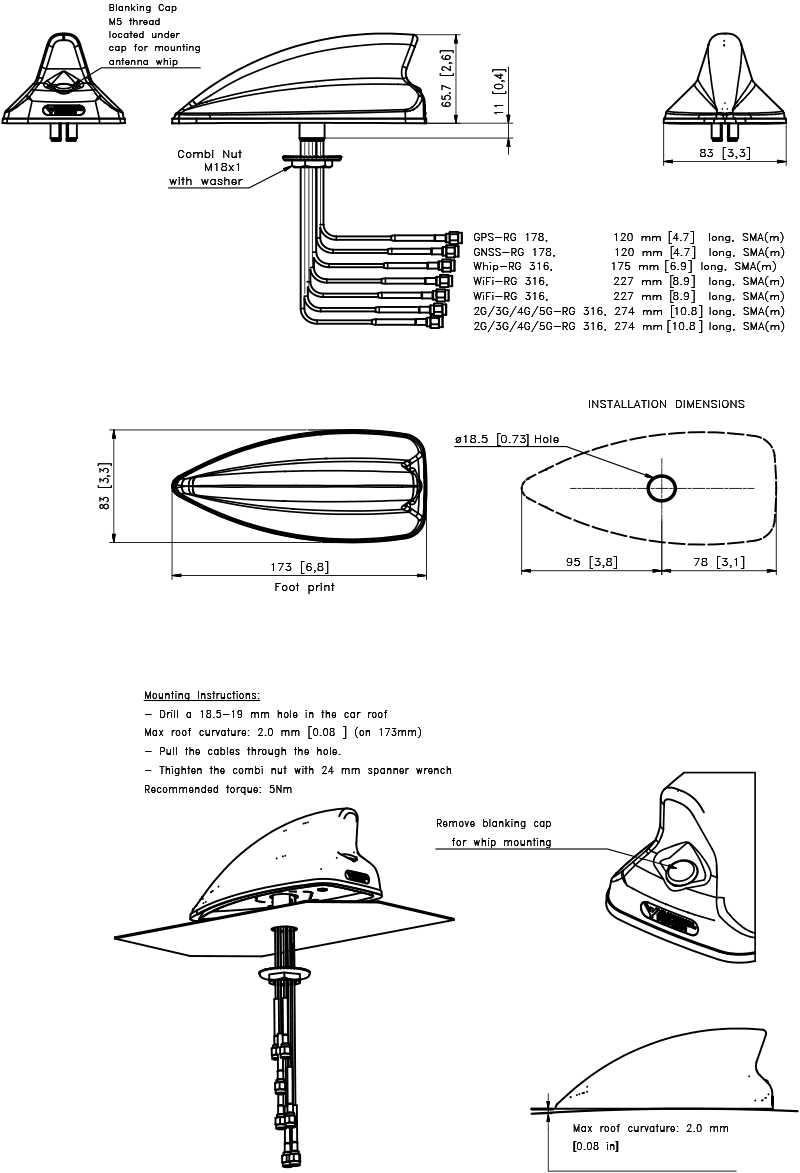

Mounting Details

ProFinPlus Mounting Details GB

All dimensions are given in mm [in.]

Important: The whip should always be dismounted during car wash.

Ordering designations

Use the guide below to make the name of the ProFin Plus you would like to buy.

Model NameCover colorGNSSLTE AntennasWIFI AntennasCable LengthLTE ConnectorsWIFI ConnectorsGNSS Connectors
ProFin Plus -W (White)
-B (Black)		 -G1
-G2		 -L2 -W2

 Blank (approx. 0.3 m / 1 ft cable length)
-5 (5 m / 16.4 ft cable length)		 -S (SMA-F)
FAKRA (on request)		 /S (SMA-F)
/RP-S (Reverse Polarity SMA-F)
FAKRA (on request)		 /S (SMA-F)
FAKRA (on request)
Naming Example
ProFin Plus -B -G1 -L2 -W2 -S /S /S

ProFin Plus-B-G1-L2-W2-S/S/S

EU and UK Declaration of Conformity

Hereby Amphenol Procom declare that the product type ProFin Plus is in compliance with EU Directive 2014/53/EU and
the UK Radio Equipment Regulations 2017 (S.I. 2017 No. 1206).
The full text of the Declaration of Conformity is available at:

https://s3.us-west-2.amazonaws.com/catsy.1080/Declaration-of-Conformity-ProFin Plus.pdf

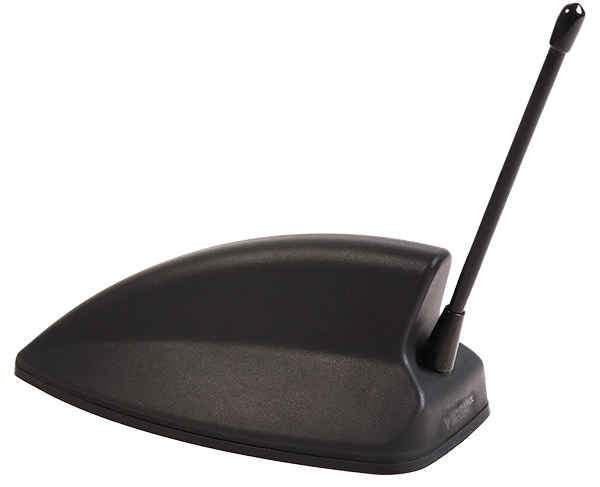

Shown with optional external whip.
